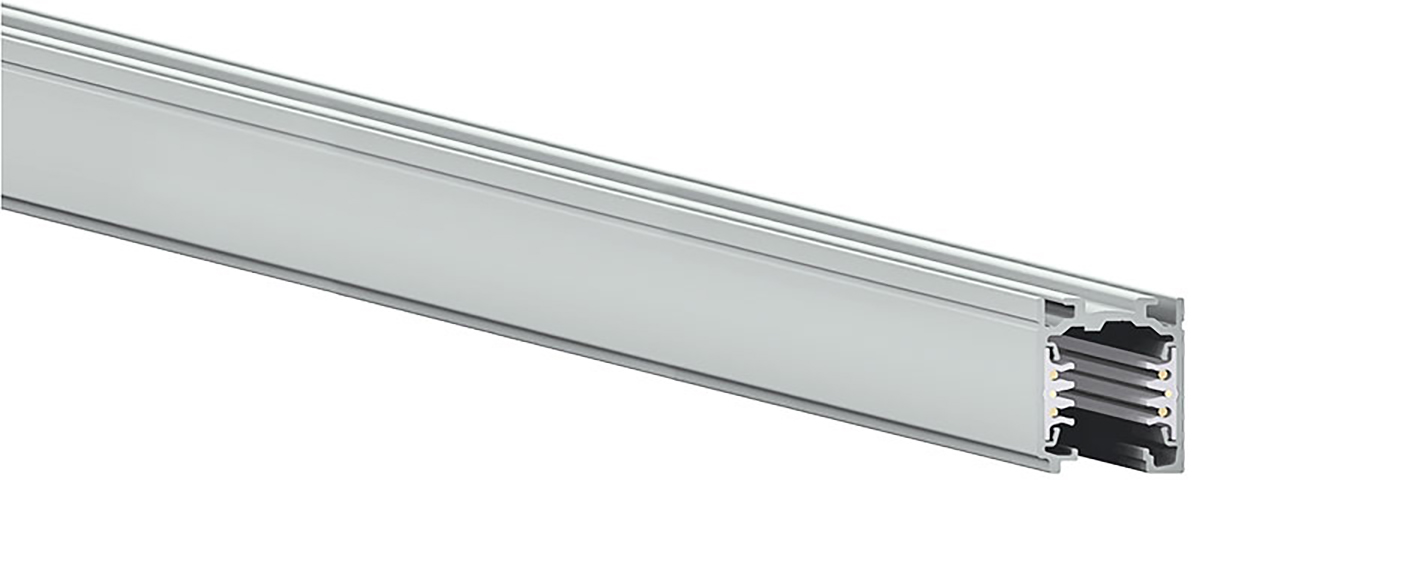

Control Track

Control Track is a controllable 3-phase track. It is easy to install and compatible with all luminaires with a Euro standard plus adaptor. The track is available in surface mounted and recessed versions. Control Track gives a smooth a clean impression in the ceiling.

Installation
Control Track can either be surface mounted, wire pendant or recessed into the celling.

Connection

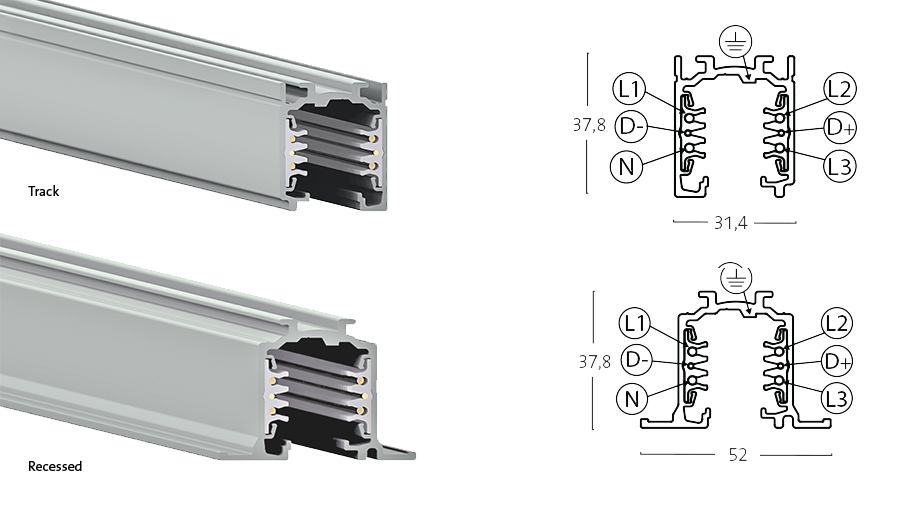

Control Track is a 6 circuit track with, 3 phases, 2 control wires, 1 neutral wire and with a protective earth, designed for 230V, 3x16A current max 3,68 kVA. It supports DALI on the 2 integrated control wires.

Design
The rail is in extruded aluminium and the accessories are in plastic, it comes in three different colours.

Anodized aluminum with grey accessories, black (RAL 9005) and white (RAL 9019). Recessed version is in our standard offer only available in white.

Dimming
DALI as standard.

Environment images


Details


Marking of product sheet

Document added to your cart

Text som beskriver tabellen
Length, mm Colour Art.No.
3000 White 82492
3000 Grey 82493
3000 Black 82494
Recessed
3000 White 82537

Accessories Control Track

Art.No.
Control Track cutting tool fort track conductors 82460
Aluminium, Control Track short pendant bracket 82463

Accessories Control Track

Art.No.
White, Control Track fixpoint 82465
Black, Control Track fixpoint 82467
White, Control Track recessed frame fixpoint 82468

Accessories Control Track

Art.No.
White, Control Track recessed main end feed left 82470
White, Control Track recessed middle feed 82472
White, Control Track recessed L-coupler left 82473
White, Control Track recessed L-coupler right 82474
White, Control Track recessed T-coupler left 82475
White, Control Track recessed T-coupler right 82476
White, Control Track recessed X-coupler 82477

Accessories Control Track

Art.No.
White, Control Track main end feed left 82500

Accessories Control Track

Art.No.
Black, Control Track main end feed left 82502
White, Control Track main end feed right 82503
Grey, Control Track main end feed right 82504

Accessories Control Track

Art.No.
White, Control Track middle feed 82506
Grey, Control Track middle feed 82507
Black, Control Track middle feed 82508
White, Control Track L-coupler left 82509
Grey, Control Track L-coupler left 82510
Black, Control Track L-coupler left 82511
White, Control Track L-coupler right 82512
Grey, Control Track L-coupler right 82513

Accessories Control Track

Art.No.
White, Control Track T-coupler right 82518
Grey, Control Track T-coupler right 82519
Black, Control Track T-coupler right 82520
White, Control Track X-coupler 82521
Grey, Control Track X-coupler 82522
Black, Control Track X-coupler 82523
White, Control Track straight coupler 82524
Grey, Control Track straight coupler 82525
Black, Control Track straight coupler 82526
White, Control Track adjustable coupler 82527
Grey, Control Track adjustable coupler 82528

Accessories Control Track

Art.No.
White, Control Track end cap 82530
Grey, Control Track end cap 82531
Black, Control Track end cap 82532

Control Track adjustable coupler

Art.No.
Black, Control Track adjustable coupler 82529

Control Track L-coupler left

Art.No.
Black, Control Track L-coupler right 82514

Control Track Long pendant bracket

Art.No.
Aluminium, Control Track Long pendant bracket 82495

Control Track long T pendant bracket

Art.No.
Aluminium, Control Track long T pendant bracket 82469

Control Track suspension hook

Art.No.
White, Control Track suspension hook 82464

Control Track T-coupler

Art.No.
White, Control Track T-coupler left 82515
Grey, Control Track T-coupler left 82516
Black, Control Track T-coupler left 82517

Control Track, main end feed

Art.No.
Grey, Control Track main end feed left 82501

Control Track, main end feed

Art.No.
Black, Control Track main end feed right 82505
