Zoft Ceiling/Wall

An all-round luminaire with glass dome for ceiling or wall installation. With pleasant light and well-balanced dimensions, Zoft is suitable for both the home and office.

Installation

Surface mounted on ceiling or wall. Protection class IP 44 on the ceiling, IP 20 on the wall.

Connection

Snap-in terminal block 2.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible. LED luminaire connects via 230 V, built-in LED driver.

Design

Diffuser in hand-blown matt opal glass, sliver enamelled luminaire body in tensile pressed sheet steel.

Dimming

e-Sense Detect – microwave sensors with lux threshold. Presence control on/off via relay or high/low, alternatively high/low/off via DALI.
e-Sense Move – microwave sensors with lux threshold. Presence control high/low/off. All luminaires have master/slave functionality with RF communications.

Media

Zoft

Decorate with light! Real glass and timeless design characterise the Zoft series of luminaires. With its comfortable light and well balanced dimensions, Zoft is suitable for both the home and office. A perfect basic luminaire for ...

More about the family Zoft

Document

Specification

Filter

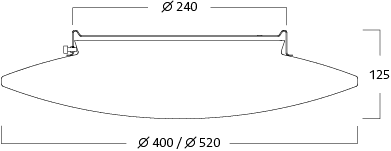

Art.no. Effect, W Lumen output CCT, K Diameter, mm Light control
Art.no. Effect, W Lumen output CCT, K Diameter, mm Light control
56300 21 1268 3000 400
56300-469 21 1268 3000 400 e-Sense Detect on/off
56301 21 1412 4000 400
56301-469 21 1412 4000 400 e-Sense Detect on/off
56302 29 1993 3000 520
56302-402 29 1993 3000 520 DALI/Phase-pulse
56302-469 29 1993 3000 520 e-Sense Detect on/off
56302-495 29 1993 3000 520 e-Sense Detect DALI absence
56302-496 29 1993 3000 520 e-Sense Move DALI absence
56303 29 2234 4000 520
56303-402 29 2234 4000 520 DALI/Phase-pulse
56303-469 29 2234 4000 520 e-Sense Detect on/off
56303-495 29 2234 4000 520 e-Sense Detect DALI absence
56303-496 29 2234 4000 520 e-Sense Move DALI absence

Filter

Name Description Art.no.
Name Description Art.No.
Remote control e-Sense Move DALIRemote control e-Sense Move DALI86305
Spare glassSpare glass Ø400 mm92278
Spare glassSpare glass Ø520 mm92279
