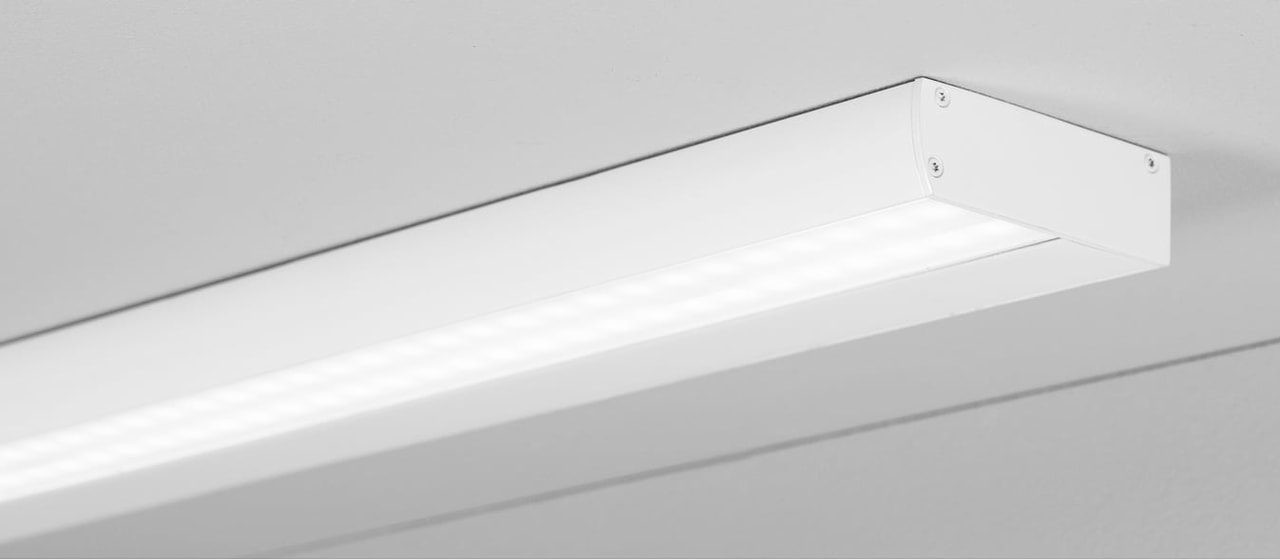

Zest LED

Zest LED is the obvious choice if you need an LED under-cupboard luminaire. Just as suitable in a domestic kitchen as in lab environments and hospitals. The luminaire can be wiped using alcohol-based cleaning agents.

Installation
For installation on the underside of top cabinets, shelves and similar applications. Secured via two keyhole slots.

Connection
For permanent connection via 230 V built-in LED driver. Snap-in terminal block 5 x 1.5 mm². 1-phase through-wiring possible. Cable entry via rear of the luminaire.

Design
White enamelled body (RAL 9016) in extruded aluminium. Diffuser in opal acrylic. Cover plate in extruded plastic. End-caps in white enamelled aluminium.

Dimming

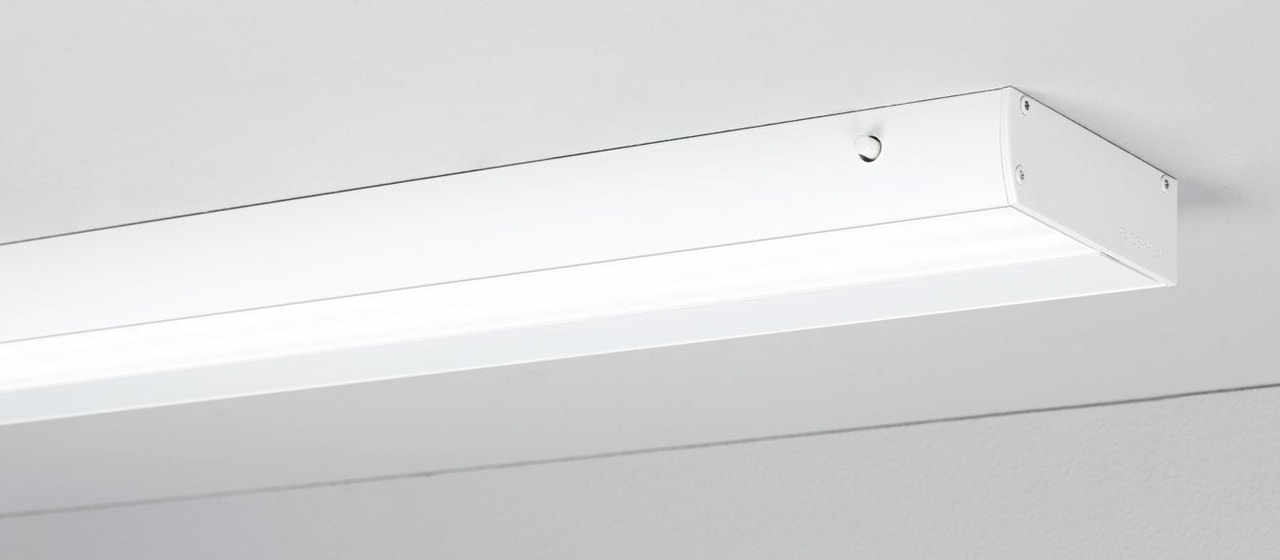

On/off or adjustable via phase-pulse control and momentary pushbutton on the front of the luminaire body or via external momentary pushbutton. With the latter option, there is no switch on the luminaire.

Miscellaneous
3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 100.000 h/10 % (max failure).

Environment images


Details


End-cap in aluminium.

End-cap in aluminium.

Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Weight, kg Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
24 3.5 1800 3000 2935 123 L90B10 50.000 h 18239
DALI or phase pulse control without pushbutton
16 2.4 1200 3000 1955 125 L90B10 50.000 h 18235
16 2.4 1200 4000 2058 131 L90B10 50.000 h 18238
9 1.4 600 3000 1083 115 L90B10 50.000 h 18229
9 1.4 600 4000 1140 121 L90B10 50.000 h 18232
Dimmable via front pushbutton
16 2.4 1200 3000 1955 125 L90B10 50.000 h 18234
16 2.4 1200 4000 2058 131 L90B10 50.000 h 18237
9 1.4 600 3000 1083 115 L90B10 50.000 h 18228
9 1.4 600 4000 1140 121 L90B10 50.000 h 18231

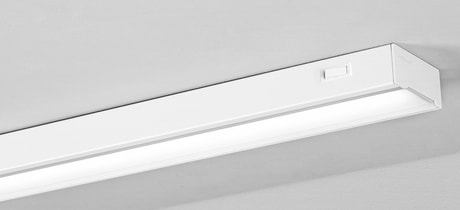

On/off via front pushbutton
16 2.4 1200 3000 1955 125 L90B10 50.000 h 18233
16 2.4 1200 4000 2058 131 L90B10 50.000 h 18236
9 1.4 600 3000 1083 115 L90B10 50.000 h 18227
9 1.4 600 4000 1140 121 L90B10 50.000 h 18230
