Wallwing

Installation
Four securing holes.

Connection
Connection via 230 V, in- built LED driver. Snap-in terminal block 5x2.5 mm²; through-wiring possible. Cable entry at the rear of the luminaire or surface-mounted mains cable from above.

Design
Luminaire body in aluminium. Shade in matt white or matt black 3 mm laser-cut aluminium sheet. Diffuser in opal acrylic.

Dimming
DALI/Phase-pulse control as standard.

Designed by
Ola Granlund and Leif Igelström.

LED-information
3000 K/4000 K: Ra (CRI) min. 80, MacAdam 4 SDCM.
Driver life-time: up to 50.000 h/10 % (max failure).

Miscellaneous
Letters and numbers can be engraved onto the shade upon request.

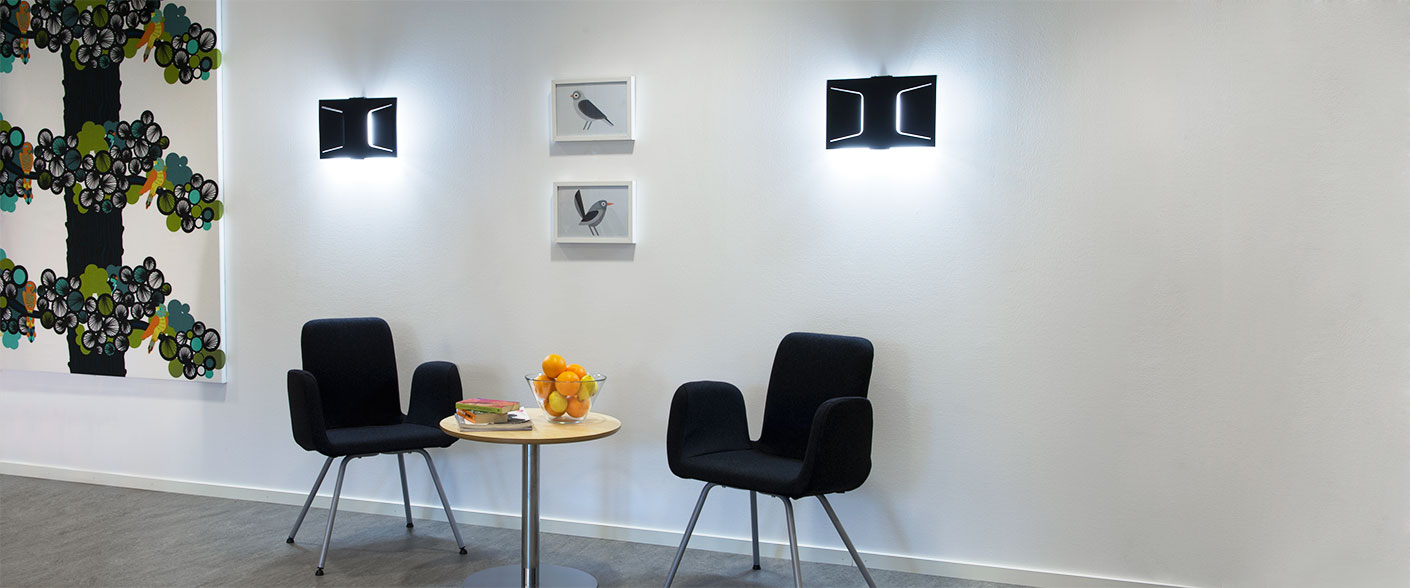

Environment images


Details


Letters and numbers can be engraved on the shade on request.

Letters and numbers can be engraved on the shade on request.

Single shade.

Single shade.

Most of the light is directed towards the floor. The luminaire also distributes light in and around the shade.

Most of the light is directed towards the floor. The luminaire also distributes light in and around the shade.

Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Weight, kg Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Double shade
22 1.5 White 3000 1375 62 L80B50 55.000 h 64001-402
22 1.5 Black 3000 1375 62 L80B50 55.000 h 64002-402
22 1.5 White 4000 1562 71 L80B50 55.000 h 64011-402
22 1.5 Black 4000 1562 71 L80B50 55.000 h 64012-402
Single shade
12 1.1 White 3000 686 57 L80B50 55.000 h 64005-402
12 1.1 Black 3000 686 57 L80B50 55.000 h 64006-402
12 1.1 White 4000 780 65 L80B50 55.000 h 64015-402
12 1.1 Black 4000 780 65 L80B50 55.000 h 64016-402
Dimensions picture
