About Wall LED
2 securing holes. Suitable for installation over a wall patress. Downward light opening has an IP 44 rating.
Connected with a 230 V, integrated drive unit. Snap-in terminal block 3x1.5 mm². 1-phase through-wiring possible. Surface mounted mains cable not possible.

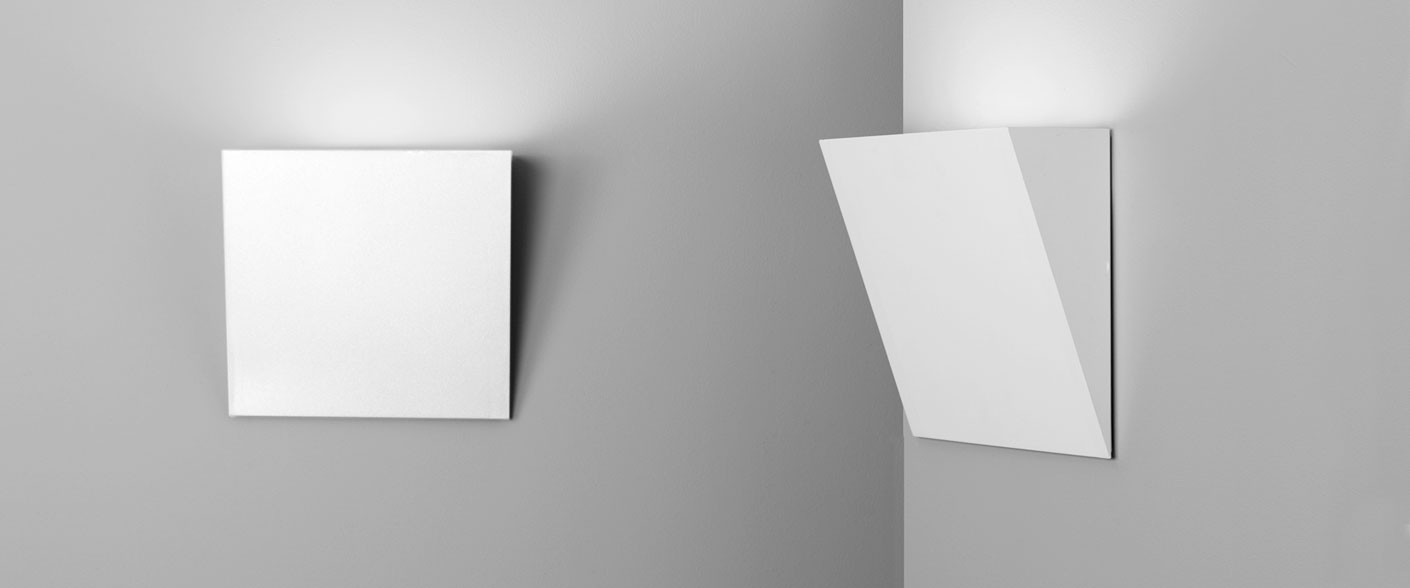

Luminaire body in structured white (RAL 9016) or structured grey (RAL 9006) sheet metal. Luminaire for MT and HDG has partially blasted protective glass.
Claesson Koivisto Rune.
3000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 50.000 h/10 % (max failure).
Downloads Wall LED
Marking of product sheet
Functions Wall LED

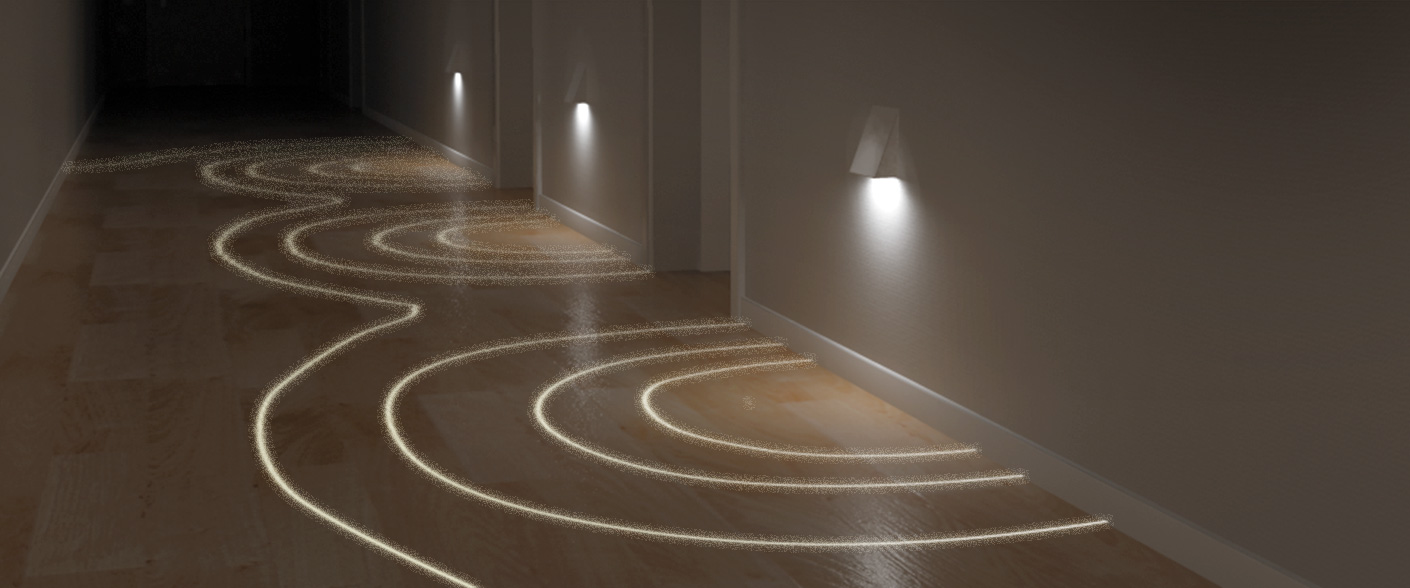

Light distribution Wall LED
6W, LED White
