Tibi Ceiling/Wall

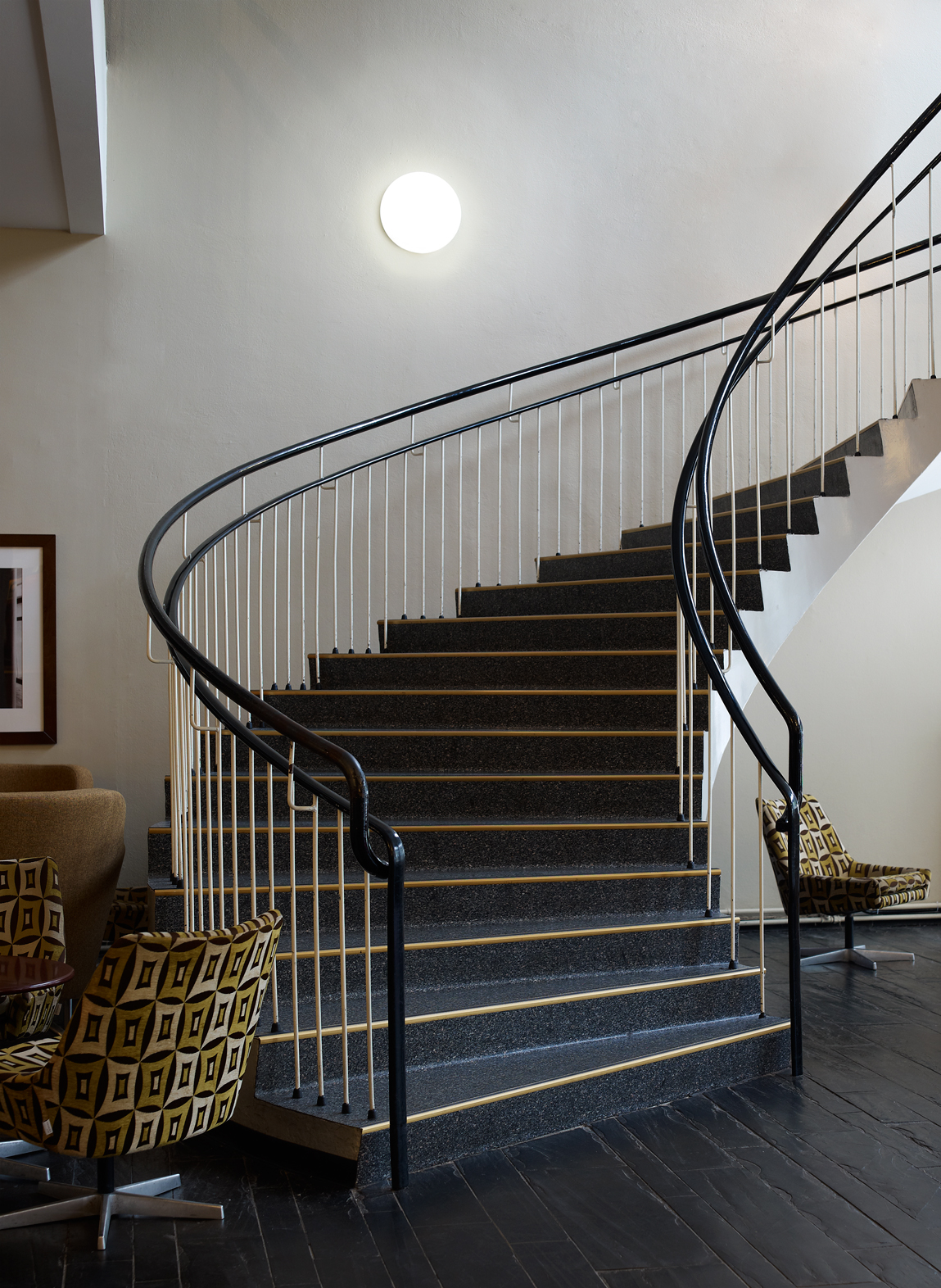

A round-beam decorative luminaire for ceiling or wall installation in two sizes for entrances and stairwells, for example.

Installation

Two securing holes for wall mounting. IP 40. IP 41 is available upon request.

Connection

Snap-in terminal block 5x2.5 mm², 1-phase through-wiring possible. Cable entry from top of the luminaire. Surface mounted mains cable possible, through-wiring 180°.

Design

Diffuser in specular opal acrylic. Luminaire body/decorative edge ring in aluminium. Decorative edge ring enamelled in glossy black (RAL 9005) or clear lacquered brushed aluminium.

Dimming

DALI/Phase-pulse control as standard.
e-Sense Detect – microwave sensors with lux threshold. Presence control on/off via relay or high/low, alternatively high/low/off via DALI.

e-Sense Move – microwave sensors with lux threshold. Presence control high/low/off. All luminaires have master/slave functionality with RF communications.

Media

Decorative edge ring lacquered in glossy black or clear lacquered brushed aluminium.

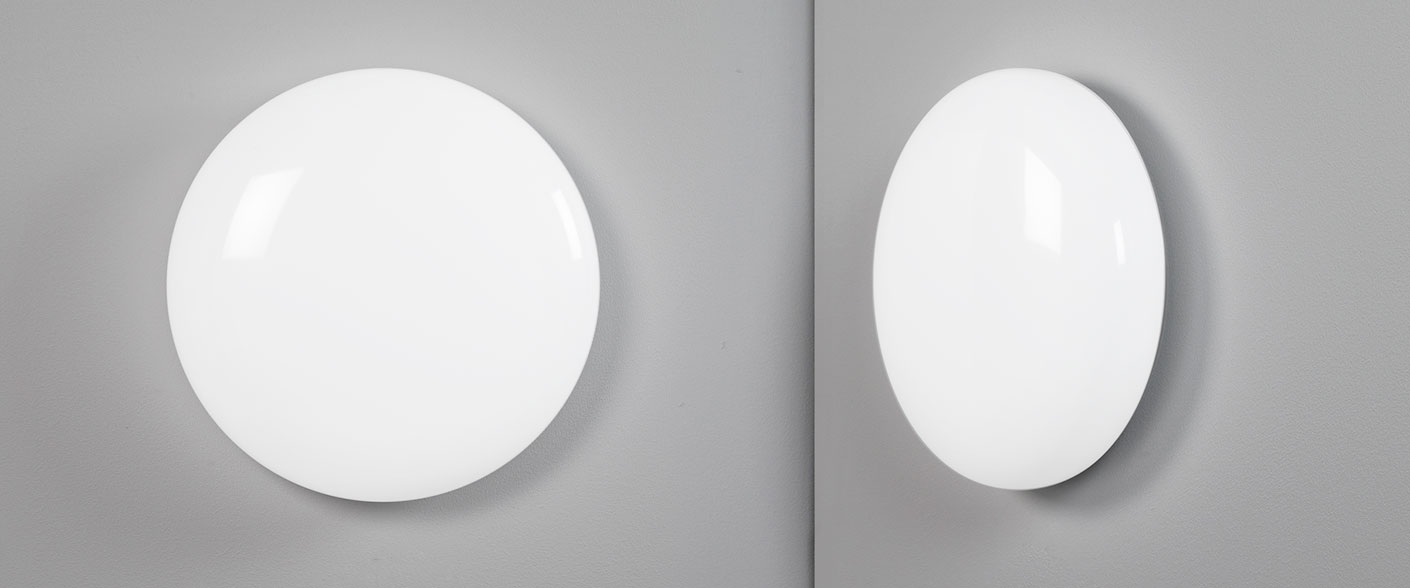

The luminaire can also be mounted on wall.

Tibi

Tibi produces a crisp, radiant light, floating in the space with its distinct form. Its classical super ellipse shape is maximised with advanced LED technology to create a stunning light experience. Its extensive range includes...

More about the family Tibi

Document

Specification

Filter

Art.no. Lumen output CCT, K Diameter, mm Colour Light control
Art.no. Lumen output CCT, K Diameter, mm Colour Light control
55260-402 1715 3000 400 Brushed aluminium DALI/Phase-pulse
55260-495 1715 3000 400 Brushed aluminium e-Sense Detect DALI absence
55260-496 1715 3000 400 Brushed aluminium e-Sense Move DALI absence
55261-402 1715 3000 400 Black DALI/Phase-pulse
55261-495 1715 3000 400 Black e-Sense Detect DALI absence
55261-496 1715 3000 400 Black e-Sense Move DALI absence
55262-402 3690 3000 600 Brushed aluminium DALI/Phase-pulse
55263-402 3690 3000 600 Black DALI/Phase-pulse
55264-402 1800 4000 400 Brushed aluminium DALI/Phase-pulse
55264-495 1800 4000 400 Brushed aluminium e-Sense Detect DALI absence
55264-496 1800 4000 400 Brushed aluminium e-Sense Move DALI absence
55265-402 1800 4000 400 Black DALI/Phase-pulse
55265-495 1800 4000 400 Black e-Sense Detect DALI absence
55265-496 1800 4000 400 Black e-Sense Move DALI absence
55266-402 3880 4000 600 Brushed aluminium DALI/Phase-pulse
55267-402 3880 4000 600 Black DALI/Phase-pulse

Filter

Name Description Art.No.
Name Description Art.No.
Remote control e-Sense Move DALIRemote control e-Sense Move DALI86305
