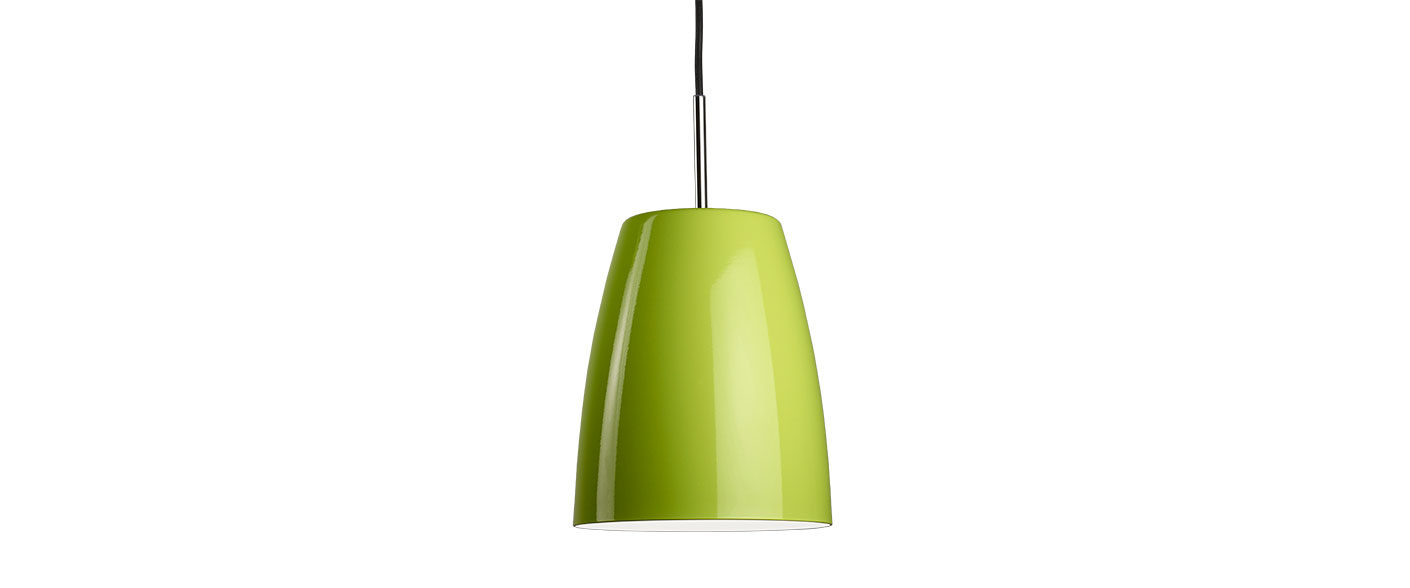

Terso

Installation
Two point suspension c/c 55–78 mm.

Connection
Snap-in terminal block 5x1.5 mm², through-wiring possible.

Design
The luminaire shade in spun aluminium, specular black or white. Other colours on request. Supplied with colour coordinated fabric cord and specular, steel ceiling cup. Ø 250 mm: 2.3 m. Ø 400 mm: 3.8 m.

Dimming
DALI/Phase-pulse control as standard.

Designed by
Sabina Grubbe.

LED-information
3000 K/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 100.000 h/10 % (max failure).

Miscellaneous
A cut-out in the ceiling cup is made using cutters 94248 for a surface mounted mains cable.

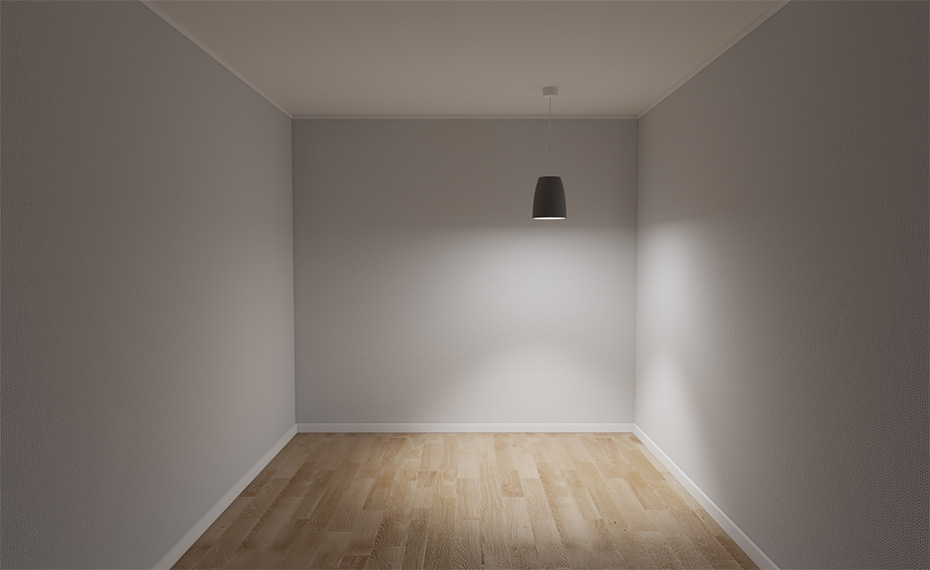

Environment images


Details


Terso is available in other colours on request.

Terso is available in other colours on request.

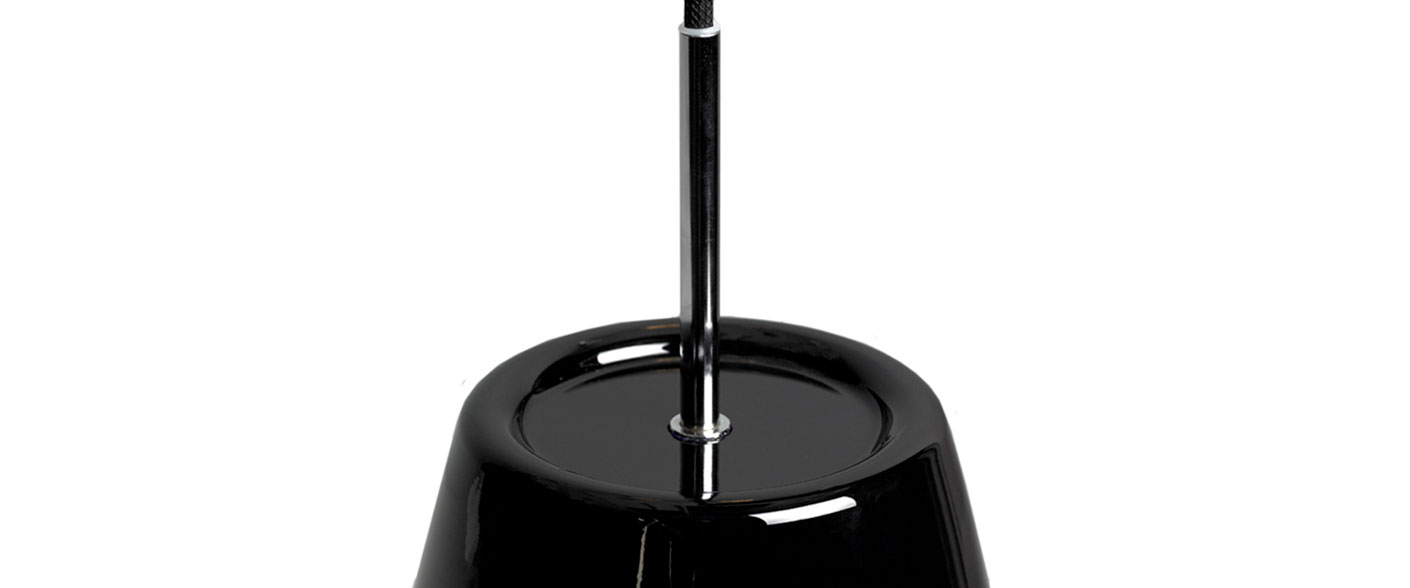

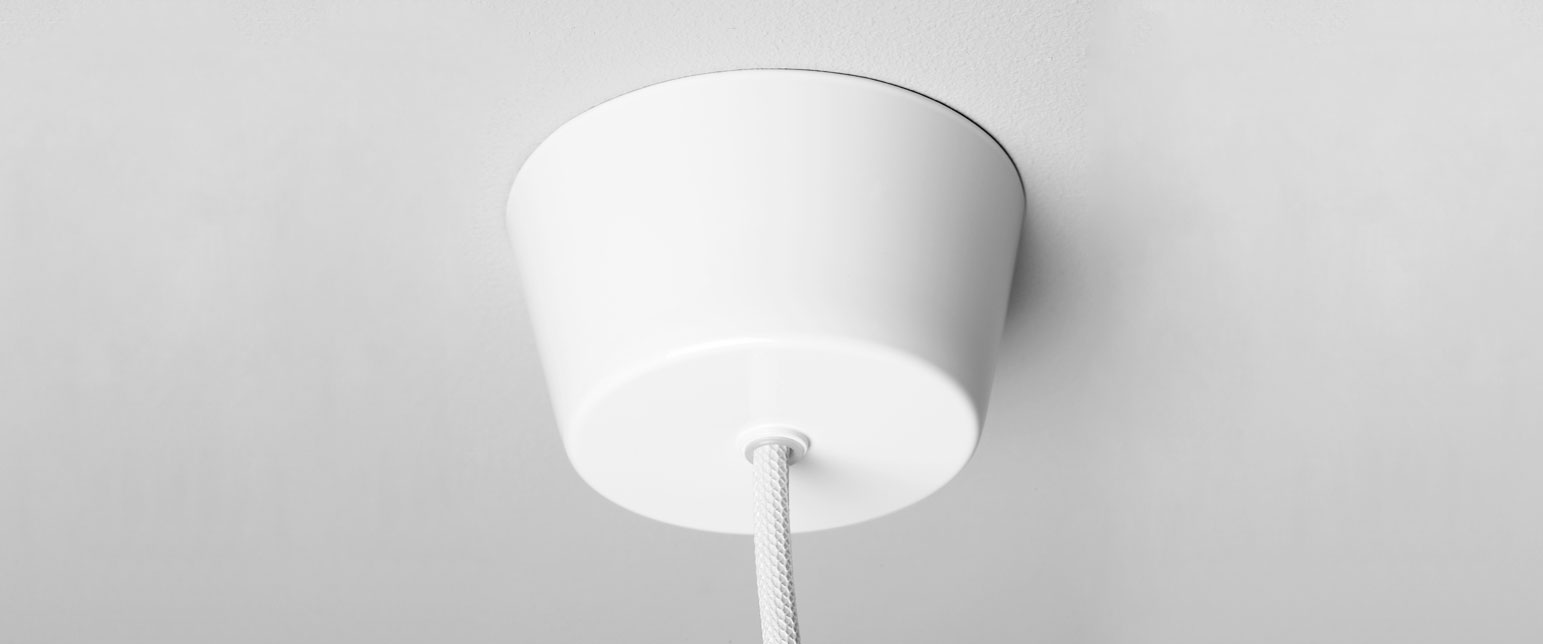

Steel ceiling cup is attached using magnets; avoiding visible screws.

Steel ceiling cup is attached using magnets; avoiding visible screws.

Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Weight, kg Diameter, mm Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
20 2.5 250 White 4000 1680 84 L70B50 50.000 h 54531-402
20 2.5 250 Black 4000 1680 84 L70B50 50.000 h 54533-402
21 2.5 250 White 3000 1680 80 L70B50 50.000 h 54530-402
21 2.5 250 Black 3000 1680 80 L70B50 50.000 h 54532-402
29 3.9 400 White 4000 2370 82 L70B50 50.000 h 54535-402
29 3.9 400 Black 4000 2370 82 L70B50 50.000 h 54537-402
31 3.9 400 White 3000 2370 76 L70B50 50.000 h 54534-402
31 3.9 400 Black 3000 2370 76 L70B50 50.000 h 54536-402

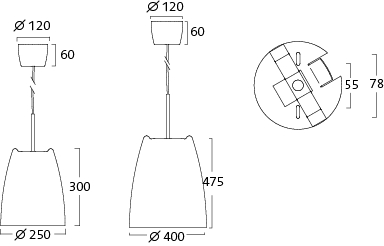

Dimensions picture
