Notor 78

Installation
Designed for single or continuous installation via a wire pendent and special loops that give flexible c-c spacing. Special loops included in the delivery. Wires suspension are ordered separately.

Connection
The start luminaire is supplied with 2,4 m mains cable excluding plug as standard. With additional numbers -448, -449 and -474 is the luminaire equipped with 2,4 mains cable, 3x1,0 mm² and earthed plug. The connecting mains cable comes out on the same side as the pull switch. The luminaire unit is equipped with a through-wiring cable (5x1.5 mm²) and a snap-in connection in each end cap. In a continuous installation, the luminaire row should always begin with a start luminaire.

Design
Body in white (RAL 9016) or natural anodised, extruded aluminium finish. The top is covered by an active film which generates a broad light pattern and which works as a dust cover.

Louvre
Delta – microprism louvre in acrylic (PMMA).

Reflector
The louvres act as reflectors.

Dimming
DALI/phase-pulse control as standard. Additional number -448, -449 and -474 is only available with single installation.
30/70, 70/30 contains 2 DALI drivers (requires 2 DALI addresses).
50/50 contains 1 DALI driver.

LED-information
3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life time: up to 100.000 h/10 % (max failure).

Miscellaneous
1200 mm: 4.6 kg
2400 mm: 9.5 kg.

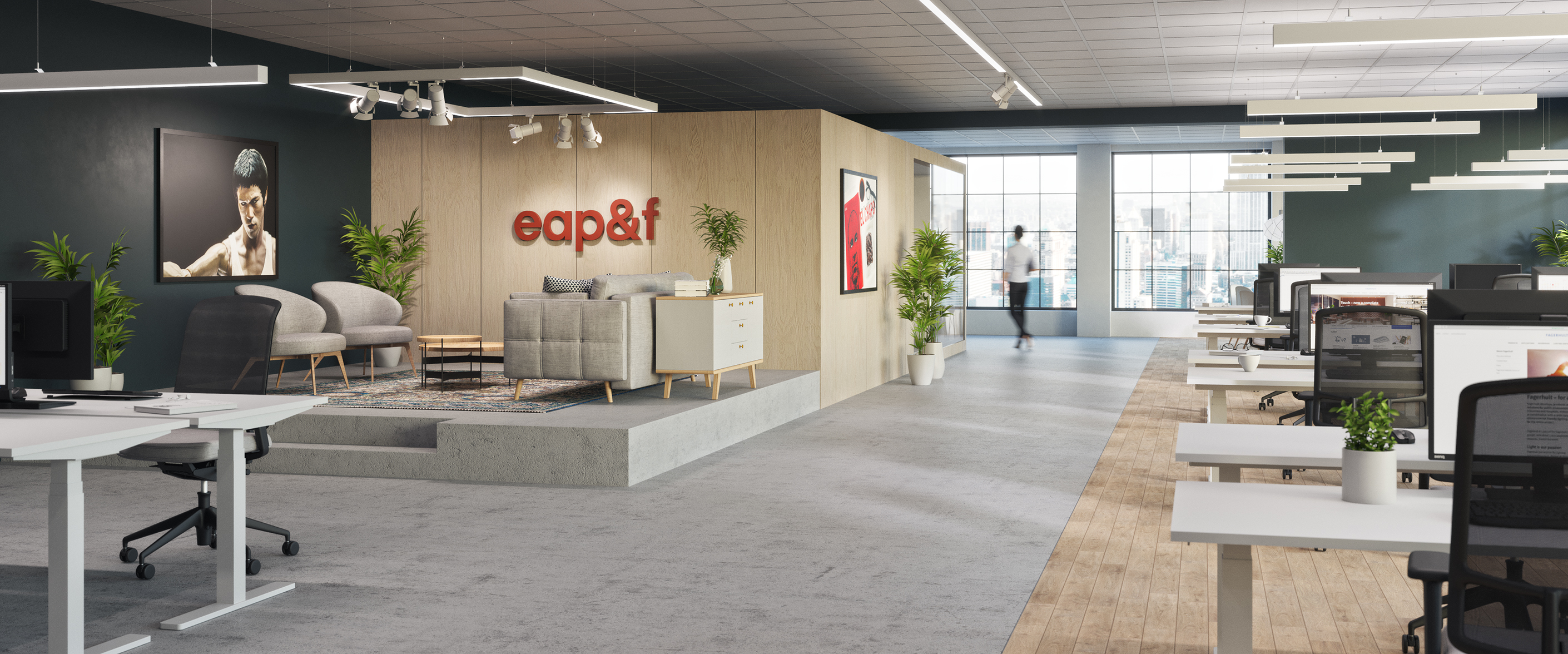

Environment images


Details


Marking of product sheet

Document added to your cart

References



Sutton Yard

A modern building in a trendy area requires a very special fitting


One Love Lane

Love is in the details

Text som beskriver tabellen
W Module Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Continuous, Direct/indirect 30/70
51 1200 White 3000 5536 109 L90B50 65.000 h 13143-402
51 1200 White 4000 5880 115 L90B50 65.000 h 13159-402
51 1200 Anodised 3000 5536 109 L90B50 65.000 h 13175-402
51 1200 Anodised 4000 5880 115 L90B50 65.000 h 13191-402
93 2400 White 3000 11072 119 L90B50 65.000 h 13145-402
93 2400 White 4000 11760 128 L90B50 65.000 h 13161-402
93 2400 Anodised 3000 11072 119 L90B50 65.000 h 13177-402
93 2400 Anodised 4000 11760 128 L90B50 65.000 h 13193-402
Continuous, Direct/indirect 50/50
37 1200 White 3000 4432 120 L90B10 50.000 h 13139-402
37 1200 White 4000 4696 127 L90B10 50.000 h 13155-402
37 1200 Anodised 3000 4432 120 L90B10 50.000 h 13171-402
37 1200 Anodised 4000 4696 127 L90B10 50.000 h 13187-402
74 2400 White 3000 8864 120 L90B10 50.000 h 13141-402
74 2400 White 4000 9392 127 L90B10 50.000 h 13157-402
74 2400 Anodised 3000 8864 120 L90B10 50.000 h 13173-402
74 2400 Anodised 4000 9392 127 L90B10 50.000 h 13189-402
Continuous, Direct/indirect 70/30
33 1200 White 3000 3643 110 L90B10 50.000 h 13131-402
33 1200 White 4000 3847 117 L90B10 50.000 h 13147-402
33 1200 Anodised 3000 3643 110 L90B10 50.000 h 13163-402
33 1200 Anodised 4000 3847 117 L90B10 50.000 h 13179-402
53 1200 White 3000 5363 101 L90B50 50.000 h 13133-402
53 1200 White 4000 5662 107 L90B50 50.000 h 13149-402
53 1200 Anodised 3000 5363 101 L90B50 50.000 h 13165-402
53 1200 Anodised 4000 5662 107 L90B50 50.000 h 13181-402
64 2400 White 3000 7286 114 L90B10 50.000 h 13135-402
64 2400 White 4000 7694 120 L90B10 50.000 h 13151-402
64 2400 Anodised 3000 7286 114 L90B10 50.000 h 13167-402
64 2400 Anodised 4000 7694 120 L90B10 50.000 h 13183-402
97 2400 White 3000 10726 111 L90B50 50.000 h 13137-402
97 2400 White 4000 11324 118 L90B50 50.000 h 13153-402
97 2400 Anodised 3000 10726 111 L90B50 50.000 h 13169-402
97 2400 Anodised 4000 11324 118 L90B50 50.000 h 13185-402
Start/Single, Direct/indirect 30/70
51 1200 White 3000 5536 109 L90B50 65.000 h 13142-402
51 1200 White 4000 5880 115 L90B50 65.000 h 13158-402
51 1200 Anodised 3000 5536 109 L90B50 65.000 h 13174-402
51 1200 Anodised 4000 5880 115 L90B50 65.000 h 13190-402
93 2400 White 3000 11072 119 L90B50 65.000 h 13144-402
93 2400 White 4000 11760 128 L90B50 65.000 h 13160-402
93 2400 Anodised 3000 11072 119 L90B50 65.000 h 13176-402
93 2400 Anodised 4000 11760 128 L90B50 65.000 h 13192-402
Start/Single, Direct/indirect 50/50
37 1200 White 3000 4432 120 L90B10 50.000 h 13138-402
37 1200 White 4000 4696 127 L90B10 50.000 h 13154-402
37 1200 Anodised 3000 4432 120 L90B10 50.000 h 13170-402
37 1200 Anodised 4000 4696 127 L90B10 50.000 h 13186-402
74 2400 White 3000 8864 120 L90B10 50.000 h 13140-402
74 2400 White 4000 9392 127 L90B10 50.000 h 13156-402
74 2400 Anodised 3000 8864 120 L90B10 50.000 h 13172-402
74 2400 Anodised 4000 9392 127 L90B10 50.000 h 13188-402
Start/Single, Direct/indirect 70/30
33 1200 White 3000 3643 110 L90B10 50.000 h 13130-402
33 1200 White 4000 3847 117 L90B10 50.000 h 13146-402
33 1200 Anodised 3000 3643 110 L90B10 50.000 h 13162-402
33 1200 Anodised 4000 3847 117 L90B10 50.000 h 13178-402
53 1200 White 3000 5363 101 L90B50 50.000 h 13132-402
53 1200 White 4000 5662 107 L90B50 50.000 h 13148-402
53 1200 Anodised 3000 5363 101 L90B50 50.000 h 13164-402
53 1200 Anodised 4000 5662 107 L90B50 50.000 h 13180-402
64 2400 White 3000 7286 114 L90B10 50.000 h 13134-402
64 2400 White 4000 7694 120 L90B10 50.000 h 13150-402
64 2400 Anodised 3000 7286 114 L90B10 50.000 h 13166-402
64 2400 Anodised 4000 7694 120 L90B10 50.000 h 13182-402
97 2400 White 3000 10726 111 L90B50 50.000 h 13136-402
97 2400 White 4000 11324 118 L90B50 50.000 h 13152-402
97 2400 Anodised 3000 10726 111 L90B50 50.000 h 13168-402
97 2400 Anodised 4000 11324 118 L90B50 50.000 h 13184-402
Text som beskriver tabellen
W Module Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Start/Single, Direct/indirect 30/70
51 1200 White 3000 5536 109 L90B50 65.000 h 13142-449
51 1200 White 4000 5536 109 L90B50 65.000 h 13158-449
51 1200 Anodised 3000 5536 109 L90B50 65.000 h 13174-449
51 1200 Anodised 4000 5536 109 L90B50 65.000 h 13190-449
Start/Single, Direct/indirect 50/50
37 1200 White 3000 4432 120 L90B10 50.000 h 13138-449
37 1200 White 4000 4432 120 L90B10 50.000 h 13154-449
37 1200 Anodised 3000 4432 120 L90B10 50.000 h 13170-449
37 1200 Anodised 4000 4432 120 L90B10 50.000 h 13186-449
Text som beskriver tabellen
W Module Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Start/Single, Direct/indirect 30/70
51 1200 White 3000 5536 109 L90B50 65.000 h 13142-448
51 1200 White 4000 5536 109 L90B50 65.000 h 13158-448
51 1200 Anodised 3000 5536 109 L90B50 65.000 h 13174-448
51 1200 Anodised 4000 5536 109 L90B50 65.000 h 13190-448
Start/Single, Direct/indirect 50/50
37 1200 White 3000 4432 120 L90B10 50.000 h 13138-448
37 1200 White 4000 4432 120 L90B10 50.000 h 13154-448
37 1200 Anodised 3000 4432 120 L90B10 50.000 h 13170-448
37 1200 Anodised 4000 4432 120 L90B10 50.000 h 13186-448
Text som beskriver tabellen
W Module Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Start/Single, Direct/indirect 30/70
51 1200 White 3000 5536 109 L90B50 65.000 h 13142-474
51 1200 White 4000 5536 109 L90B50 65.000 h 13158-474
51 1200 Anodised 3000 5536 109 L90B50 65.000 h 13174-474
51 1200 Anodised 4000 5536 109 L90B50 65.000 h 13190-474
Start/Single, Direct/indirect 50/50
37 1200 White 3000 4432 120 L90B10 50.000 h 13138-474
37 1200 White 4000 4432 120 L90B10 50.000 h 13154-474
37 1200 Anodised 3000 4432 120 L90B10 50.000 h 13170-474
37 1200 Anodised 4000 4432 120 L90B10 50.000 h 13186-474

Wire suspension

Art.No.
Wire suspension with single wire and ceiling cup. L=1,5 m. Small ceiling cup, white/each. 94327
Wire suspension with single wire and ceiling cup. L=1,5 m. Small ceiling cup for T-bars 25 mm, white/each. 94880
