Notor recessed LED Delta

Available January 2017.

Installation
Luminaire for mounted in ventilated or unventilated suspended ceilings. Installed in suspended ceilings with visible T-bars, VTB (25 or 15 mm) or one-piece suspended ceilings.

Connection
Connection by means of a connection box on top of the luminaire. Wieland Chassis connector 3-way (GST 18i3), with dimming 5-way (GST 18i5). In a continuous installation the luminaire row should always start with a start luminaire. With continuous installation the luminaire units are interconnected with a connection cable in the connection box.

Design
Luminaire body in natural anodised, extruded aluminium or white enamelled (RAL 9016). With continuous installation an unbroken line of light is achieved, even via a L-coupling.

Louvre
Delta – microprism louvre in acrylic (PMMA) with a thin opal diffuser (acrylic/PMMA) on the inside (PMMA).

LED-information
3000 K/4000 K: CRI min. 85, L90 50 000 h, MacAdam 3 SDCM.

Miscellaneous
Accessories and cables, see Accessories.

To calculate how many luminaires and accessories you will need to complete a run, please use our configurator.

NOTE! Do not mix Low Lumens (LL)- and High Lumen (HL)-luminaires in continuous installations.

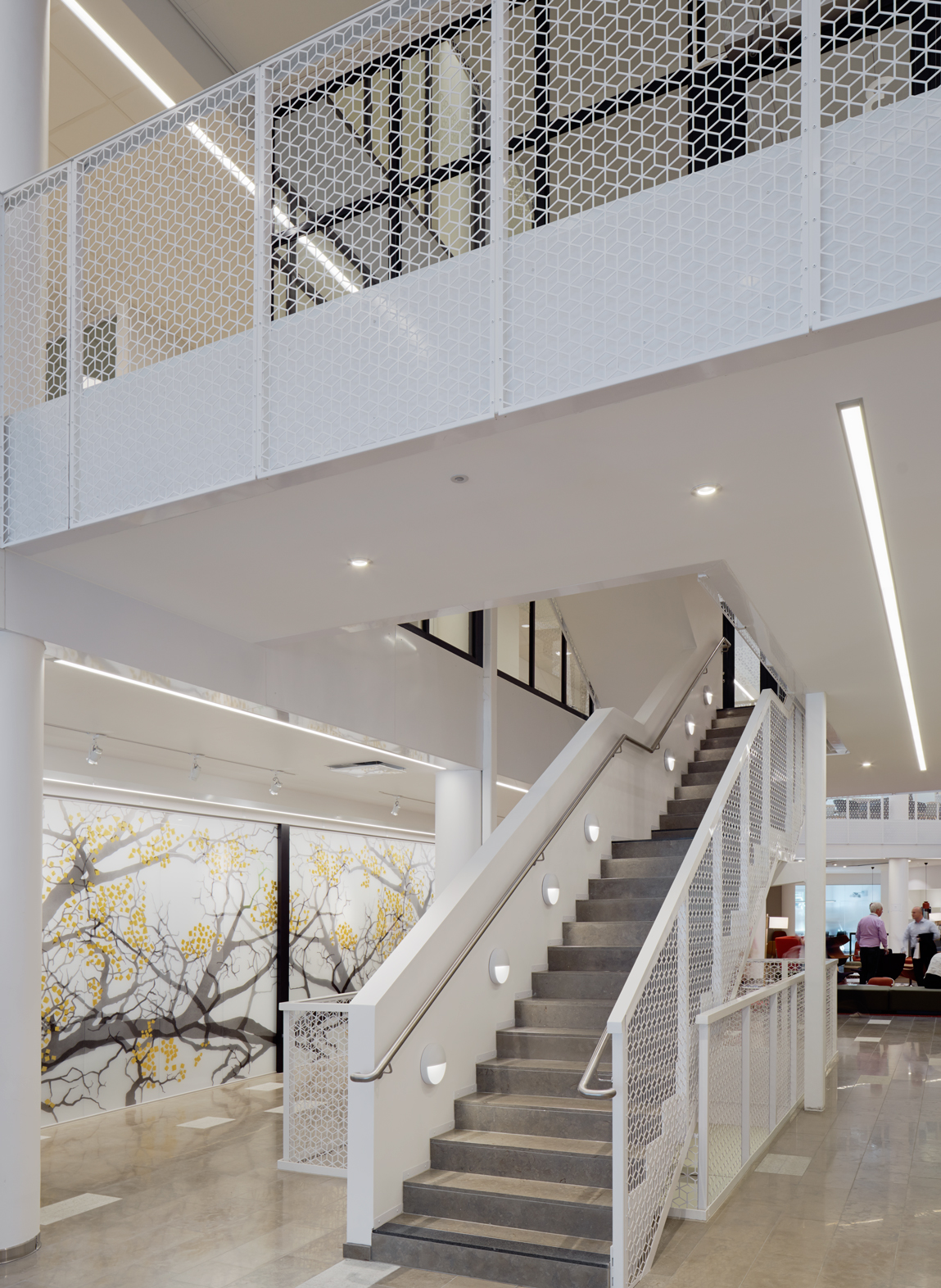

Environment images


Details


The LED board is safeguarded by the transparent contact protection with a lens function.

The LED board is safeguarded by the transparent contact protection with a lens function.

Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Module Weight, kg Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Illuminated corner, High Lumen (HL) – available in january 2017
25 600x600 3.5 Anodised 3000 2376 95 L90B10 50.000 h 21902
25 600x600 3.5 Anodised 4000 2430 97 L90B10 50.000 h 21903
25 600x600 3.5 White 3000 2376 95 L90B10 50.000 h 21906
25 600x600 3.5 White 4000 2430 97 L90B10 50.000 h 21907
Illuminated corner, Low Lumen (LL) – available in january 2017
14 600x600 3.5 Anodised 3000 1334 95 L90B10 50.000 h 21900
14 600x600 3.5 Anodised 4000 1366 98 L90B10 50.000 h 21901
14 600x600 3.5 White 3000 1334 95 L90B10 50.000 h 21904
14 600x600 3.5 White 4000 1366 98 L90B10 50.000 h 21905
Straight luminaire, High Lumen (HL), continuous – available in january 2017
13 600 1.9 Anodised 3000 1188 91 L90B10 50.000 h 23575
13 600 1.9 Anodised 4000 1215 93 L90B10 50.000 h 23578
13 600 1.9 White 3000 1188 91 L90B10 50.000 h 23581
13 600 1.9 White 4000 1215 93 L90B10 50.000 h 23584
25 1200 3.7 Anodised 3000 2450 98 L90B10 50.000 h 23576
25 1200 3.7 Anodised 4000 2501 100 L90B10 50.000 h 23579
25 1200 3.7 White 3000 2450 98 L90B10 50.000 h 23582
25 1200 3.7 White 4000 2501 100 L90B10 50.000 h 23585
46 2400 7.4 Anodised 3000 4900 107 L90B10 50.000 h 23577
46 2400 7.4 Anodised 4000 5003 109 L90B10 50.000 h 23580
46 2400 7.4 White 3000 4900 107 L90B10 50.000 h 23583
46 2400 7.4 White 4000 5003 109 L90B10 50.000 h 23586
Straight luminaire, High Lumen (HL), single – available in january 2017
13 600 1.9 Anodised 3000 1188 91 L90B10 50.000 h 23527
13 600 1.9 Anodised 4000 1215 93 L90B10 50.000 h 23530
13 600 1.9 White 3000 1188 91 L90B10 50.000 h 23533
13 600 1.9 White 4000 1215 93 L90B10 50.000 h 23536
25 1200 3.7 Anodised 3000 2450 98 L90B10 50.000 h 23528
25 1200 3.7 Anodised 4000 2501 100 L90B10 50.000 h 23531
25 1200 3.7 White 3000 2450 98 L90B10 50.000 h 23534
25 1200 3.7 White 4000 2501 100 L90B10 50.000 h 23537
46 2400 7.4 Anodised 3000 4900 107 L90B10 50.000 h 23529
46 2400 7.4 Anodised 4000 5003 109 L90B10 50.000 h 23532
46 2400 7.4 White 3000 4900 107 L90B10 50.000 h 23535
46 2400 7.4 White 4000 5003 109 L90B10 50.000 h 23538
Straight luminaire, High Lumen (HL), start – available in january 2017
13 600 1.9 Anodised 3000 1188 91 L90B10 50.000 h 23551
13 600 1.9 Anodised 4000 1215 93 L90B10 50.000 h 23554
13 600 1.9 White 3000 1188 91 L90B10 50.000 h 23557
13 600 1.9 White 4000 1215 93 L90B10 50.000 h 23560
25 1200 3.7 Anodised 3000 2450 98 L90B10 50.000 h 23552
25 1200 3.7 Anodised 4000 2501 100 L90B10 50.000 h 23555
25 1200 3.7 White 3000 2450 98 L90B10 50.000 h 23558
25 1200 3.7 White 4000 2501 100 L90B10 50.000 h 23561
46 2400 7.4 Anodised 3000 4900 107 L90B10 50.000 h 23553
46 2400 7.4 Anodised 4000 5003 109 L90B10 50.000 h 23556
46 2400 7.4 White 3000 4900 107 L90B10 50.000 h 23559
46 2400 7.4 White 4000 5003 109 L90B10 50.000 h 23562
Straight luminaire, Low Lumen (LL), continuous – available in january 2017
14 1200 3.7 Anodised 3000 1376 98 L90B10 50.000 h 23564
14 1200 3.7 Anodised 4000 1403 100 L90B10 50.000 h 23567
14 1200 3.7 White 3000 1376 98 L90B10 50.000 h 23570
14 1200 3.7 White 4000 1403 100 L90B10 50.000 h 23573
25 2400 7.4 Anodised 3000 2752 110 L90B10 50.000 h 23565
25 2400 7.4 Anodised 4000 2805 112 L90B10 50.000 h 23568
25 2400 7.4 White 3000 2752 110 L90B10 50.000 h 23571
25 2400 7.4 White 4000 2805 112 L90B10 50.000 h 23574
8 600 1.9 Anodised 3000 667 83 L90B10 50.000 h 23563
8 600 1.9 Anodised 4000 683 85 L90B10 50.000 h 23566
8 600 1.9 White 3000 667 83 L90B10 50.000 h 23569
8 600 1.9 White 4000 683 85 L90B10 50.000 h 23572
Straight luminaire, Low Lumen (LL), single – available in january 2017
14 1200 3.7 Anodised 3000 1376 98 L90B10 50.000 h 23516
14 1200 3.7 Anodised 4000 1403 98 L90B10 50.000 h 23519
14 1200 3.7 White 3000 1376 98 L90B10 50.000 h 23522
14 1200 3.7 White 4000 1403 98 L90B10 50.000 h 23525
25 2400 7.4 Anodised 3000 2752 110 L90B10 50.000 h 23517
25 2400 7.4 Anodised 4000 2805 110 L90B10 50.000 h 23520
25 2400 7.4 White 3000 2752 110 L90B10 50.000 h 23523
25 2400 7.4 White 4000 2805 110 L90B10 50.000 h 23526
8 600 1.9 Anodised 3000 667 83 L90B10 50.000 h 23515
8 600 1.9 Anodised 4000 683 83 L90B10 50.000 h 23518
8 600 1.9 White 3000 667 83 L90B10 50.000 h 23521
8 600 1.9 White 4000 683 83 L90B10 50.000 h 23524
Straight luminaire, Low Lumen (LL), start – available in january 2017
14 1200 3.7 Anodised 3000 1376 98 L90B10 50.000 h 23540
14 1200 3.7 Anodised 4000 1403 100 L90B10 50.000 h 23543
14 1200 3.7 White 3000 1376 98 L90B10 50.000 h 23546
14 1200 3.7 White 4000 1403 100 L90B10 50.000 h 23549
25 2400 7.4 Anodised 3000 2752 110 L90B10 50.000 h 23541
25 2400 7.4 Anodised 4000 2805 112 L90B10 50.000 h 23544
25 2400 7.4 White 3000 2752 110 L90B10 50.000 h 23547
25 2400 7.4 White 4000 2805 112 L90B10 50.000 h 23550
8 600 1.9 Anodised 3000 667 83 L90B10 50.000 h 23539
8 600 1.9 Anodised 4000 683 85 L90B10 50.000 h 23542
8 600 1.9 White 3000 667 83 L90B10 50.000 h 23545
8 600 1.9 White 4000 683 85 L90B10 50.000 h 23548
Text som beskriver tabellen
W Module Weight, kg Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Illuminated corner, High Lumen (HL) – available in january 2017
25 600x600 3.5 Anodised 3000 2376 95 L90B10 50.000 h 21902-402
25 600x600 3.5 Anodised 4000 2430 97 L90B10 50.000 h 21903-402
25 600x600 3.5 White 3000 2376 95 L90B10 50.000 h 21906-402
25 600x600 3.5 White 4000 2430 97 L90B10 50.000 h 21907-402
Illuminated corner, Low Lumen (LL) – available in january 2017
14 600x600 3.5 Anodised 3000 1334 95 L90B10 50.000 h 21900-402
14 600x600 3.5 Anodised 4000 1366 98 L90B10 50.000 h 21901-402
14 600x600 3.5 White 3000 1334 95 L90B10 50.000 h 21904-402
14 600x600 3.5 White 4000 1366 98 L90B10 50.000 h 21905-402
Straight luminaire, High Lumen (HL), continuous – available in january 2017
13 600 1.9 Anodised 3000 1188 91 L90B10 50.000 h 23575-402
13 600 1.9 Anodised 4000 1215 93 L90B10 50.000 h 23578-402
13 600 1.9 White 3000 1188 91 L90B10 50.000 h 23581-402
13 600 1.9 White 4000 1215 93 L90B10 50.000 h 23584-402
25 1200 3.7 Anodised 3000 2450 98 L90B10 50.000 h 23576-402
25 1200 3.7 Anodised 4000 2501 100 L90B10 50.000 h 23579-402
25 1200 3.7 White 3000 2450 98 L90B10 50.000 h 23582-402
25 1200 3.7 White 4000 2501 100 L90B10 50.000 h 23585-402
46 2400 7.4 Anodised 3000 4900 107 L90B10 50.000 h 23577-402
46 2400 7.4 Anodised 4000 5003 109 L90B10 50.000 h 23580-402
46 2400 7.4 White 3000 4900 107 L90B10 50.000 h 23583-402
46 2400 7.4 White 4000 5003 109 L90B10 50.000 h 23586-402
Straight luminaire, High Lumen (HL), single – available in january 2017
13 600 1.9 Anodised 3000 1188 91 L90B10 50.000 h 23527-402
13 600 1.9 Anodised 4000 1215 93 L90B10 50.000 h 23530-402
13 600 1.9 White 3000 1188 91 L90B10 50.000 h 23533-402
13 600 1.9 White 4000 1215 93 L90B10 50.000 h 23536-402
25 1200 3.7 Anodised 3000 2450 98 L90B10 50.000 h 23528-402
25 1200 3.7 Anodised 4000 2501 100 L90B10 50.000 h 23531-402
25 1200 3.7 White 3000 2450 98 L90B10 50.000 h 23534-402
25 1200 3.7 White 4000 2501 100 L90B10 50.000 h 23537-402
46 2400 7.4 Anodised 3000 4900 107 L90B10 50.000 h 23529-402
46 2400 7.4 Anodised 4000 5003 109 L90B10 50.000 h 23532-402
46 2400 7.4 White 3000 4900 107 L90B10 50.000 h 23535-402
46 2400 7.4 White 4000 5003 109 L90B10 50.000 h 23538-402
Straight luminaire, High Lumen (HL), start – available in january 2017
13 600 1.9 Anodised 3000 1188 91 L90B10 50.000 h 23551-402
13 600 1.9 Anodised 4000 1215 93 L90B10 50.000 h 23554-402
13 600 1.9 White 3000 1188 91 L90B10 50.000 h 23557-402
13 600 1.9 White 4000 1215 93 L90B10 50.000 h 23560-402
25 1200 3.7 Anodised 3000 2450 98 L90B10 50.000 h 23552-402
25 1200 3.7 Anodised 4000 2501 100 L90B10 50.000 h 23555-402
25 1200 3.7 White 3000 2450 98 L90B10 50.000 h 23558-402
25 1200 3.7 White 4000 2501 100 L90B10 50.000 h 23561-402
46 2400 7.4 Anodised 3000 4900 107 L90B10 50.000 h 23553-402
46 2400 7.4 Anodised 4000 5003 109 L90B10 50.000 h 23556-402
46 2400 7.4 White 3000 4900 107 L90B10 50.000 h 23559-402
46 2400 7.4 White 4000 5003 109 L90B10 50.000 h 23562-402
Straight luminaire, Low Lumen (LL), continuous – available in january 2017
14 1200 3.7 Anodised 3000 1376 98 L90B10 50.000 h 23564-402
14 1200 3.7 Anodised 4000 1403 100 L90B10 50.000 h 23567-402
14 1200 3.7 White 3000 1376 98 L90B10 50.000 h 23570-402
14 1200 3.7 White 4000 1403 100 L90B10 50.000 h 23573-402
25 2400 7.4 Anodised 3000 2752 110 L90B10 50.000 h 23565-402
25 2400 7.4 Anodised 4000 2805 112 L90B10 50.000 h 23568-402
25 2400 7.4 White 3000 2752 110 L90B10 50.000 h 23571-402
25 2400 7.4 White 4000 2805 112 L90B10 50.000 h 23574-402
8 600 1.9 Anodised 3000 667 83 L90B10 50.000 h 23563-402
8 600 1.9 Anodised 4000 683 85 L90B10 50.000 h 23566-402
8 600 1.9 White 3000 667 83 L90B10 50.000 h 23569-402
8 600 1.9 White 4000 683 85 L90B10 50.000 h 23572-402
Straight luminaire, Low Lumen (LL), single – available in january 2017
14 1200 3.7 Anodised 3000 1376 98 L90B10 50.000 h 23516-402
14 1200 3.7 Anodised 4000 1403 98 L90B10 50.000 h 23519-402
14 1200 3.7 White 3000 1376 98 L90B10 50.000 h 23522-402
14 1200 3.7 White 4000 1403 98 L90B10 50.000 h 23525-402
25 2400 7.4 Anodised 3000 2752 110 L90B10 50.000 h 23517-402
25 2400 7.4 Anodised 4000 2805 110 L90B10 50.000 h 23520-402
25 2400 7.4 White 3000 2752 110 L90B10 50.000 h 23523-402
25 2400 7.4 White 4000 2805 110 L90B10 50.000 h 23526-402
8 600 1.9 Anodised 3000 667 83 L90B10 50.000 h 23515-402
8 600 1.9 Anodised 4000 683 83 L90B10 50.000 h 23518-402
8 600 1.9 White 3000 667 83 L90B10 50.000 h 23521-402
8 600 1.9 White 4000 683 83 L90B10 50.000 h 23524-402
Straight luminaire, Low Lumen (LL), start – available in january 2017
14 1200 3.7 Anodised 3000 1376 98 L90B10 50.000 h 23540-402
14 1200 3.7 Anodised 4000 1403 100 L90B10 50.000 h 23543-402
14 1200 3.7 White 3000 1376 98 L90B10 50.000 h 23546-402
14 1200 3.7 White 4000 1403 100 L90B10 50.000 h 23549-402
25 2400 7.4 Anodised 3000 2752 110 L90B10 50.000 h 23541-402
25 2400 7.4 Anodised 4000 2805 112 L90B10 50.000 h 23544-402
25 2400 7.4 White 3000 2752 110 L90B10 50.000 h 23547-402
25 2400 7.4 White 4000 2805 112 L90B10 50.000 h 23550-402
8 600 1.9 Anodised 3000 667 83 L90B10 50.000 h 23539-402
8 600 1.9 Anodised 4000 683 85 L90B10 50.000 h 23542-402
8 600 1.9 White 3000 667 83 L90B10 50.000 h 23545-402
8 600 1.9 White 4000 683 85 L90B10 50.000 h 23548-402

Carrier rail

For installation in the middle of a ceiling panel in a concealed T-bar structure, L = 600 mm. Positioned between two T-bars.

Art.No.
Carrier rail/pair. L=600 mm. 91148

Connection cables, quick connection system

Black connection cable, female + male, cross-section 1.5 mm2, 1-phase + dimming (Wieland GST) 5 way

Art.No.
Length 1.0 m 91030
Length 3.0 m 91031

Connection cables, quick connection system

White connection cable, female + male, cross-section 1.5 mm², 1-phase, 3-way connectors (Wieland GST)

Art.No.
Through wiring L=2.5 m with female and male connectors 91074

Connection cables, quick connection system

Black connection cable, female + male, cross-section 1.5 mm2, 1-phase + dimming (Wieland GST) 5 way

Art.No.
Length 2.0 m 91076
Length 2.5 m 91077

Connection cables, quick connection system

White connection cable, female + male, cross-section 1.5 mm², 1-phase, 3-way connectors (Wieland GST)

Art.No.
Through wiring L=1.0 m with female and male connectors 91791
Through wiring L=1.0 m with female and male connectors 91792
Through wiring L=1.0 m with female and male connectors 91793

End-cap

End-cap

Art.No.
End cap/pair, Flat alu-zinc for 600 mm body in VTB ceiling 91043

End-cap

End-cap

Art.No.
End-cap/pair, Delta, Lamell, Beta, Opal flush, Anodised 91053

End-cap

End-cap

Art.No.
End-cap/pair, Delta, Lamell, Beta, Opal flush, White 91128

End-cap

End-cap

Art.No.
91150
91174

Luminaire rail

Fitted to Notor during installation in a concealed T-bar structure so that Notor becomes part of the structure.

Art.No.
Notor rail L=1800/pair, excl. screws 91141

Luminaire rail

Fitted to Notor during installation in a concealed T-bar structure so that Notor becomes part of the structure.

Art.No.
Notor rail L=1120 mm/pair, incl. screws 91144
Notor rail 520 mm/pair, incl. screws 91145

Mains cable

Connection Cable. Wieland connection system.

Art.No.
Mains cable, female, length 2.0 m 91022

Mains cable

Connection Cable. Wieland connection system.

Art.No.
Mains cable, L=2.0 m, female excl. plug 91789
Mains cable, L=2.0 m, female with earthed plug 91790

Mounting bracket

Mounting bracket

Art.No.
Mounting bracket/pair 91045

Screws

Screws for track. 1 package/500 pcs (require 10 pcs/m).

Art.No.
Screws 500 pcs B8x6,5. (10 pcs/m needed). 91142

Suspension bracket

For single installation between two rails.

Art.No.
Suspension bracket/pair 91147

Suspension bracket, Ecophon

To suspend Notor from the rafters during installation with a concealed T-bar structure.

Art.No.
Suspension bracket/pair, Ecophon excl. friction lock 91149

Suspension bracket, Rockfon

Suspension bracket, Rockfon with friction lock

Art.No.
Suspension bracket/pair, Rockfon, with friction lock. 91146

Wire

Art.No.
50.0 m wire 91496

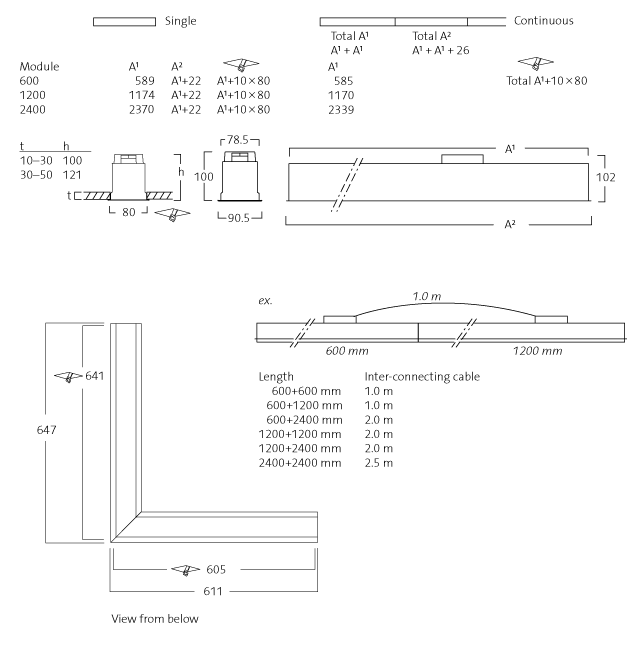

Dimensions picture
Light distribution
Delta, 600 mm

Delta, 600 mm

Delta, 1200 mm

Delta, 1200 mm

Contact us

Contact us
