Noc Square G2

Noc Square G2 is a delicate recessed gimble spotlight. It is available in single or double – each available in two sizes, depending on the required light source. Due to the snap-in light units, installation is simple, the luminaire’s frame is installed fi rst, then the light unit is inserted.

Installation
For installation in ventilated ceilings.
The luminaire must not be covered with insulation. For further details please refer to the assembly instructions on our website.

Connection
Connection in remote LED driver, luminare are pre-connected to driver.

Design
Housing in extruded aluminium, and parts in die casted aluminium, powder coated white (RAL 9016) structured.

Reflector
Reflector for spot, medium or flood beam angle.

Designed by
Johan Lemaitre

LED-information
3000 K: CRI 80, L70 50 000 h, MacAdam 3 SDCM.

Miscellaneous
Passived cooled. Tiltable (Noc 70 22º, Noc 111 38º). Preconnected luminaire to driver. In single or double version.

Environment images


Marking of product sheet

Document added to your cart

Documents

Text som beskriver tabellen
W Weight, kg Colour CCT (K) Beam angle, ° Light distribution lm lm/W Art.No.
LED
Noc 111, 3000 lm, double
2x38 1.2 White 830 10 Spot 2x2964 78 68043
2x38 2.4 White 830 20 Medium 2x2964 78 68044
2x38 2.4 White 830 36 Flood 2x2888 76 68045
Noc 111, 3000 lm, single
38 1.2 White 830 10 Spot 2964 78 68033
38 1.2 White 830 20 Medium 2964 78 68034
38 1.2 White 830 36 Flood 2888 76 68035
Noc 70, 2000 lm, double
2x25 1.4 White 830 20 Spot 2x1775 71 68073
2x25 1.4 White 830 20 Medium 2x1750 71 68074

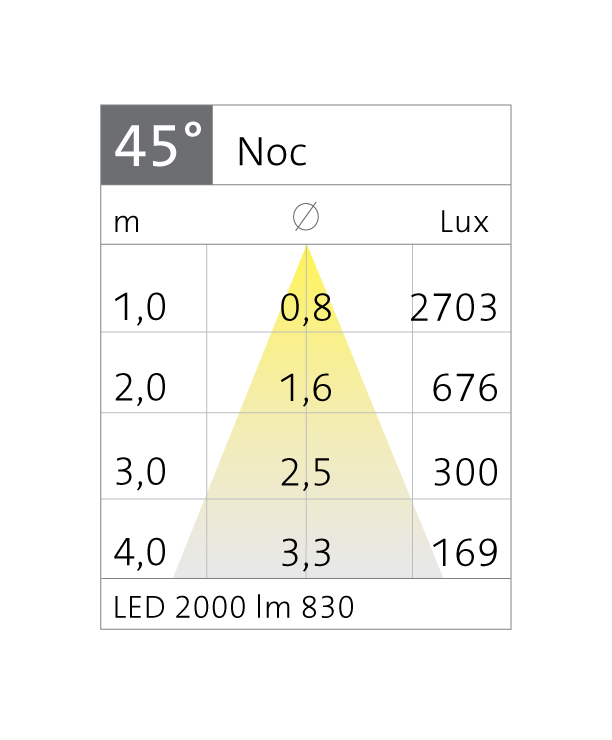

2x25 1.4 White 830 45 Flood 2x1725 69 68075
Noc 70, 2000 lm, single
25 0.7 White 830 20 Spot 1775 71 68063

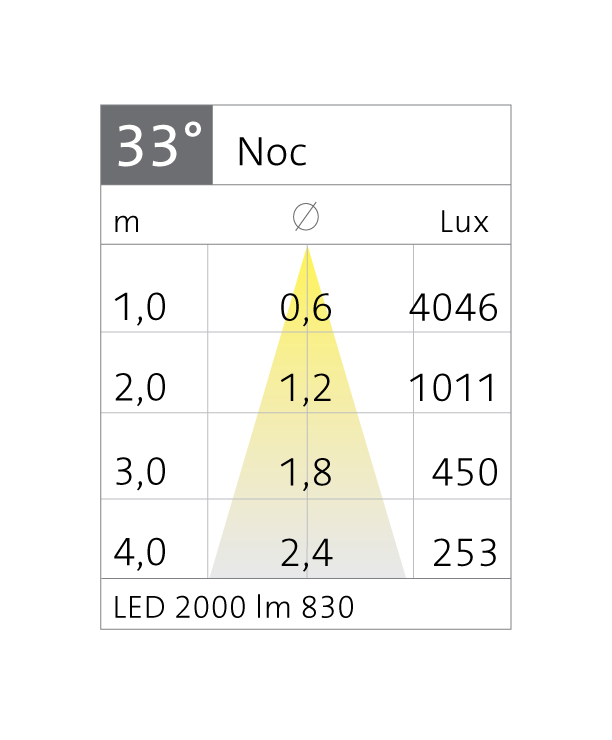

25 0.7 White 830 33 Medium 1750 70 68064
25 0.7 White 830 45 Flood 1725 69 68065

Noc support frame

Art.No.
Noc 70 Soft tile support frame (1 unit required per light unit) 1230409
Noc 111 Soft tile support frame (1 required per light unit) 97003
Dimensions picture
Dimensions picture 02
