Lunova

See items

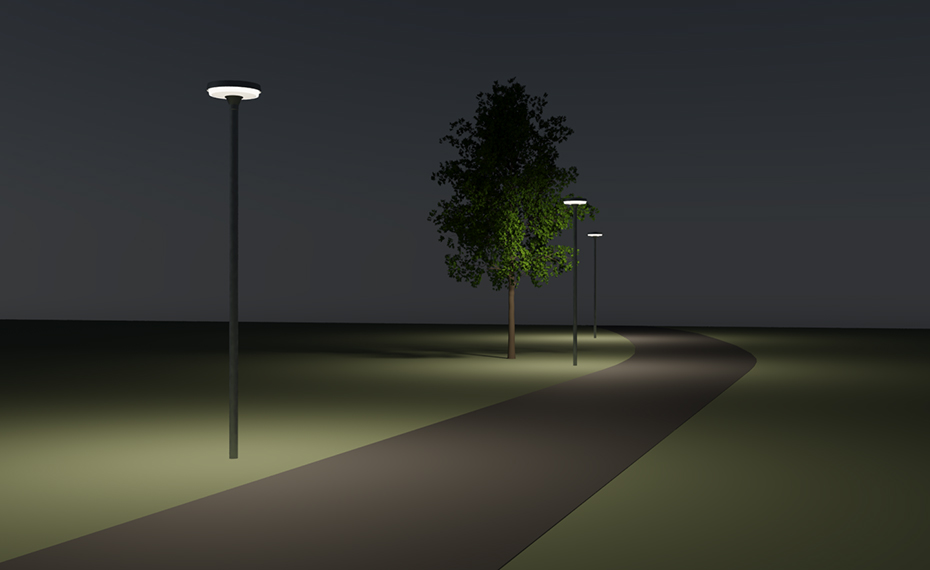

An omnidirectional post top luminaire in a classic design producing safe and secure ambiences in park and close-to-the-building environments. CLO for output consistency as standard.

Installation

Luminaire for assembly on a post, with post top Ø 60 mm or Ø 76 mm.

Connection

Supplied with 6 m 3x1,5 mm² connection cable (H07RN-F). DALI versions come with a 5-pin cable.

Design

Body and heat sink of cast aluminium. Aluminium-zinc coated stainless screws. Diffuser of impact and UV-resistant acrylic. Driver is integrated in the luminaire.

Reflector

White-enamelled omnidirectional reflector of anodised aluminium.

Dimming

Night-time dimming 1 – dims down for six hours.
Night-time dimming 2 – dims down for eight hours.
Citygrid on pole.

Designed by

Torbjörn Eliasson and Andreas Sture.

Standard colour

Anthracite grey (Gris 900 Sablé). Alu-grey (RAL 9006, semi-gloss), black (RAL 9005) or white (RAL 9010, semi-gloss) on request.

LED-information

DALI versions are equipped with NTC, over-heat protection.
Driver with integrated surge protection (6 kV).
Extra surge protection (10 kV) available on request.

Miscellaneous

Zhaga or NEMA socket on request.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life. Shielding in 120 degrees is possible on request.

Media

Lunova

Lunova

Lunova

Lunova

Lunova

Lunova

Lunova

Lunova

Lunova

Lunova

Lunova

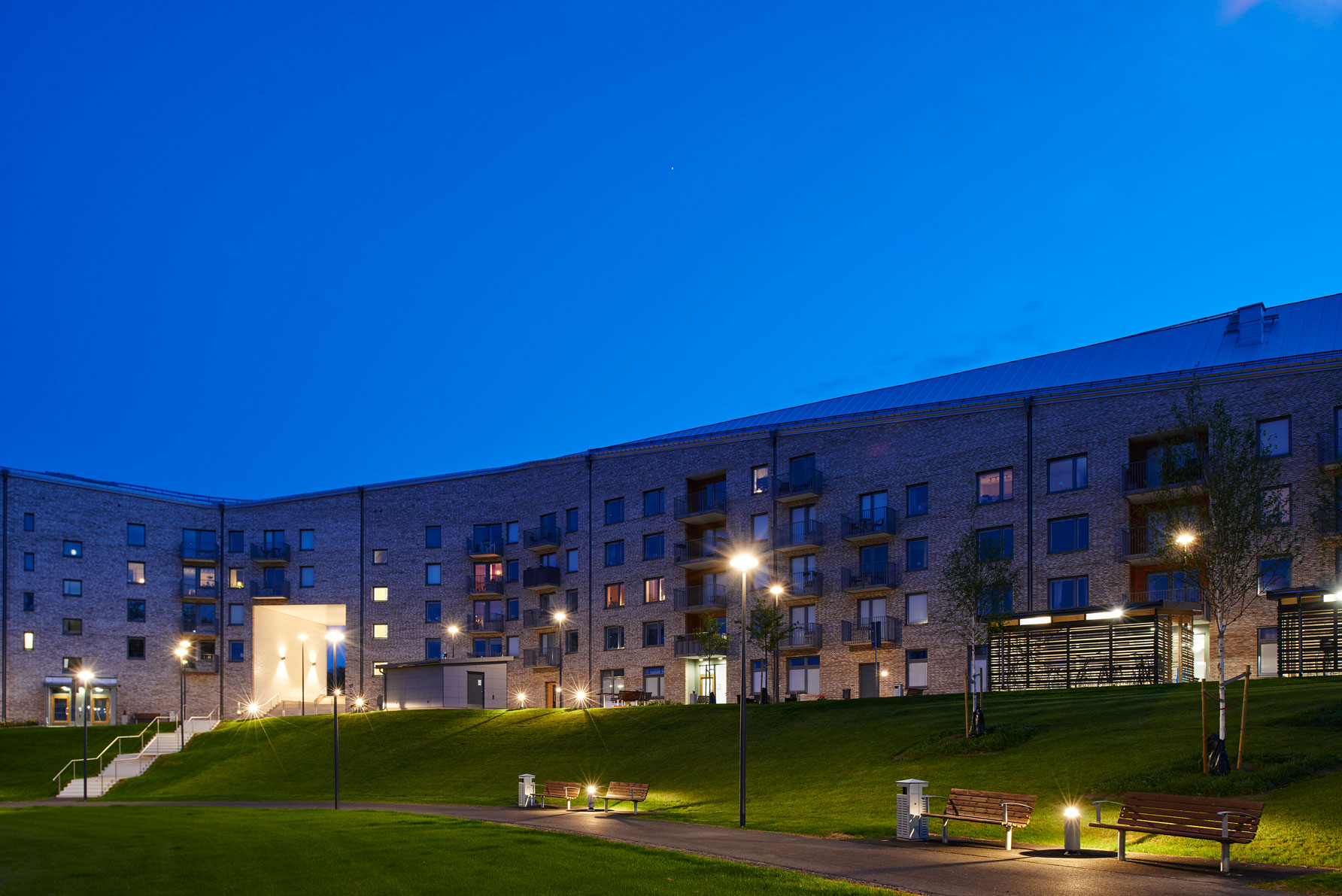

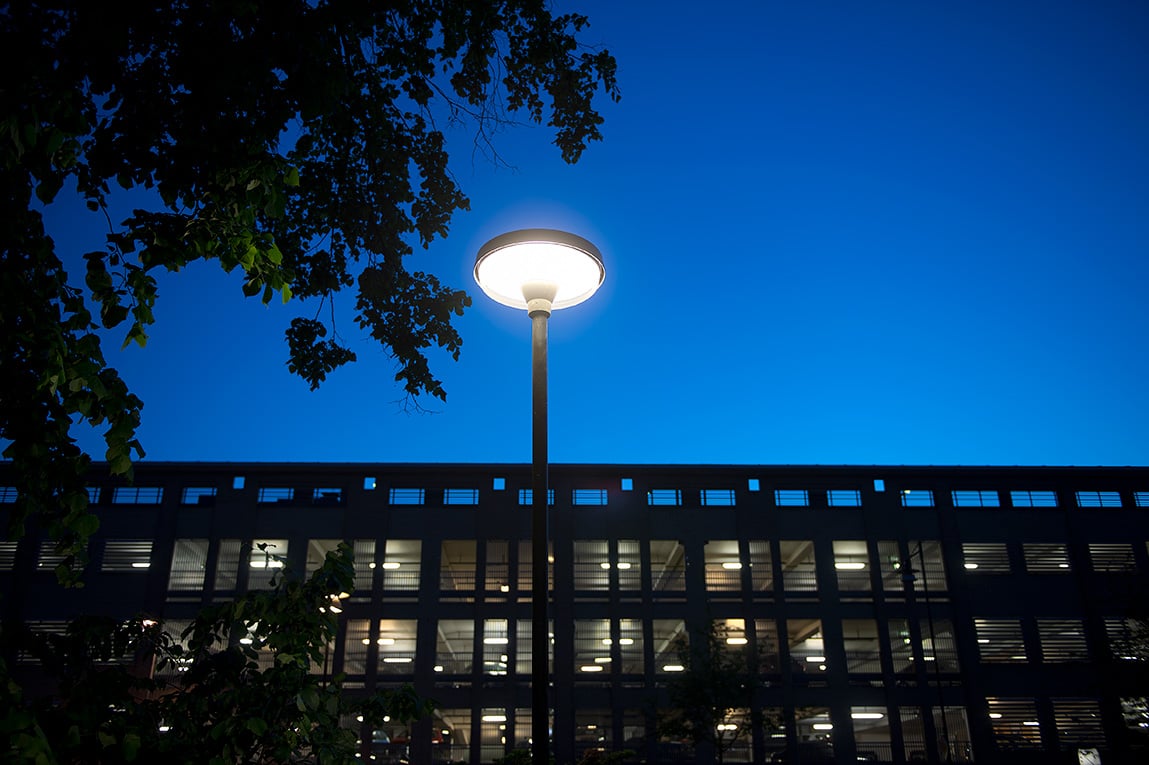

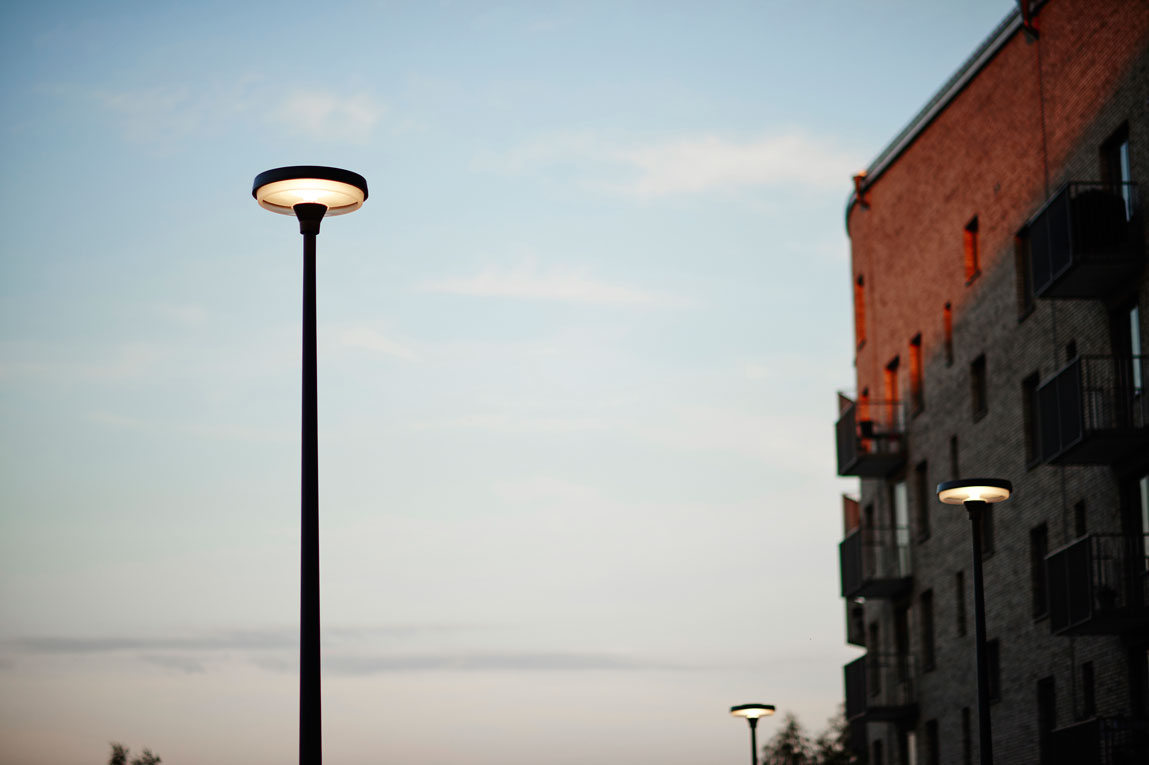

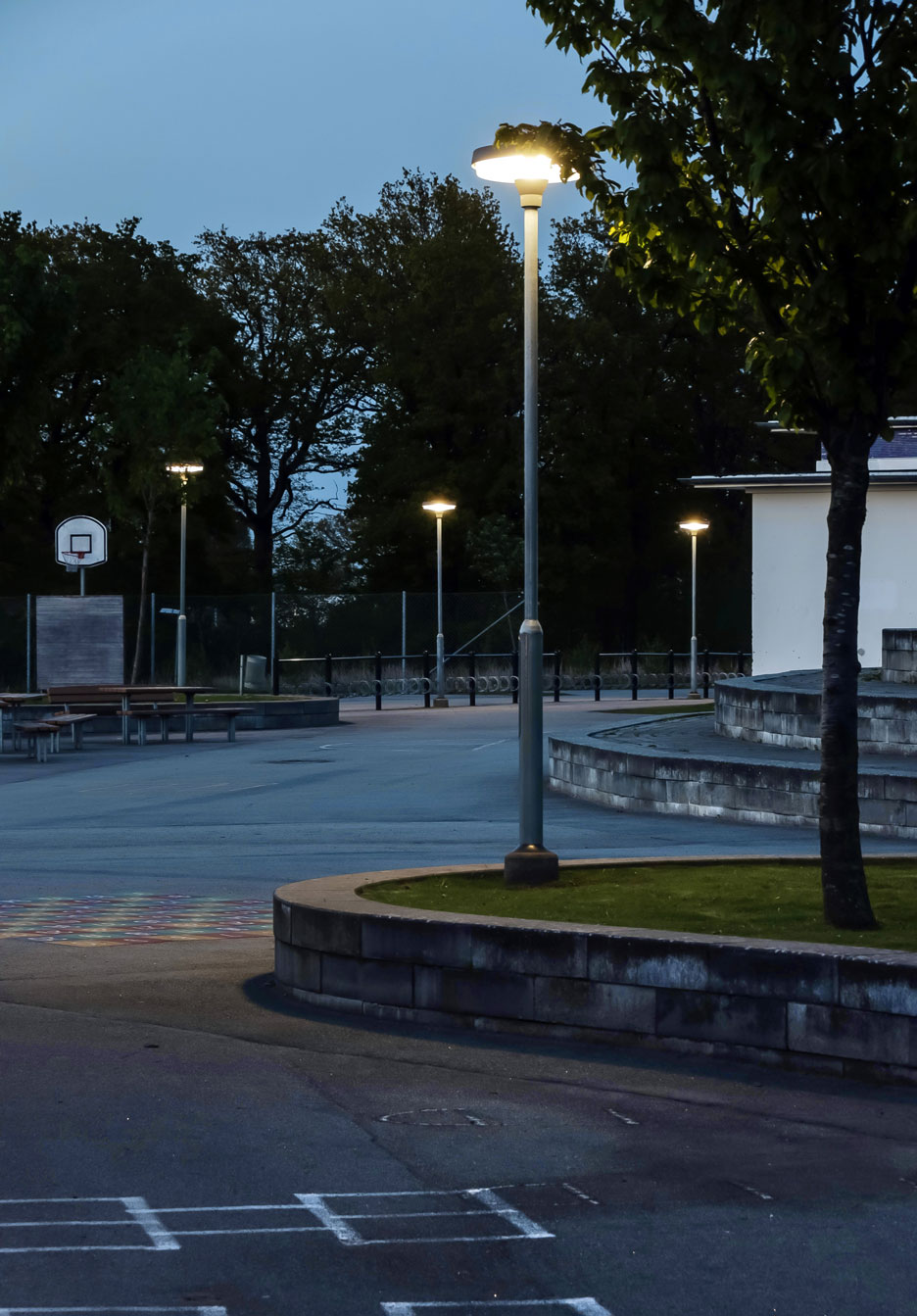

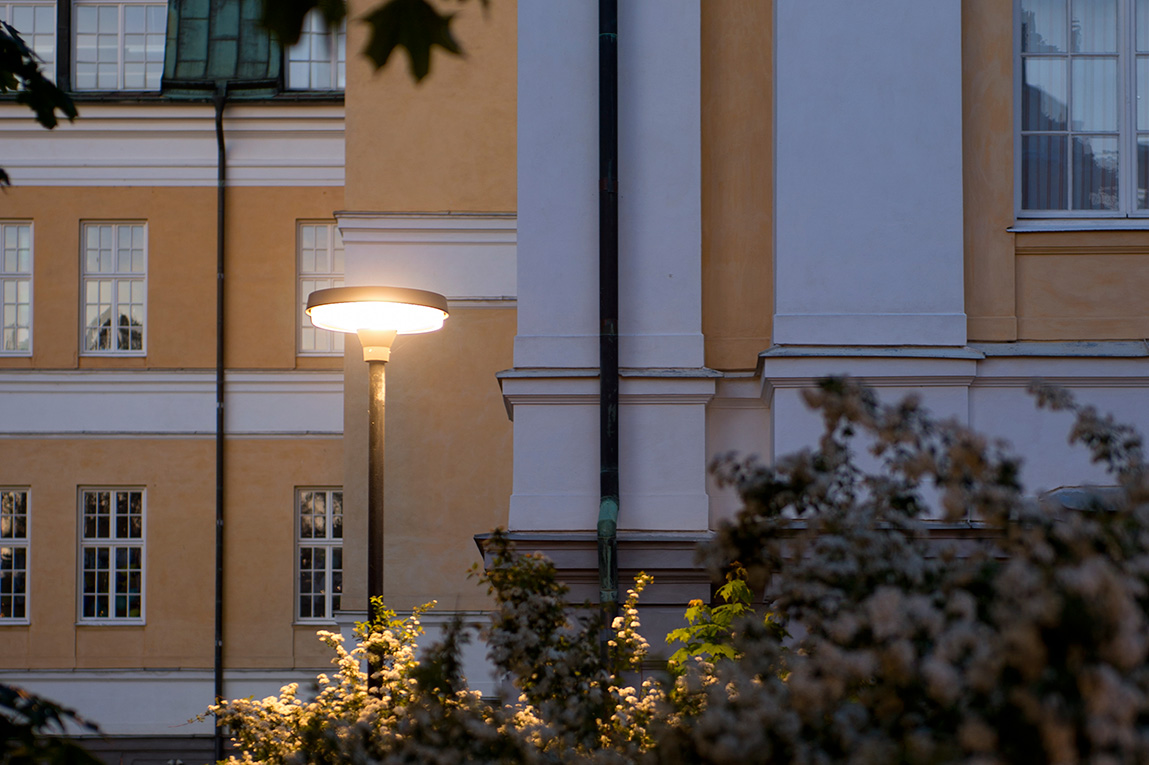

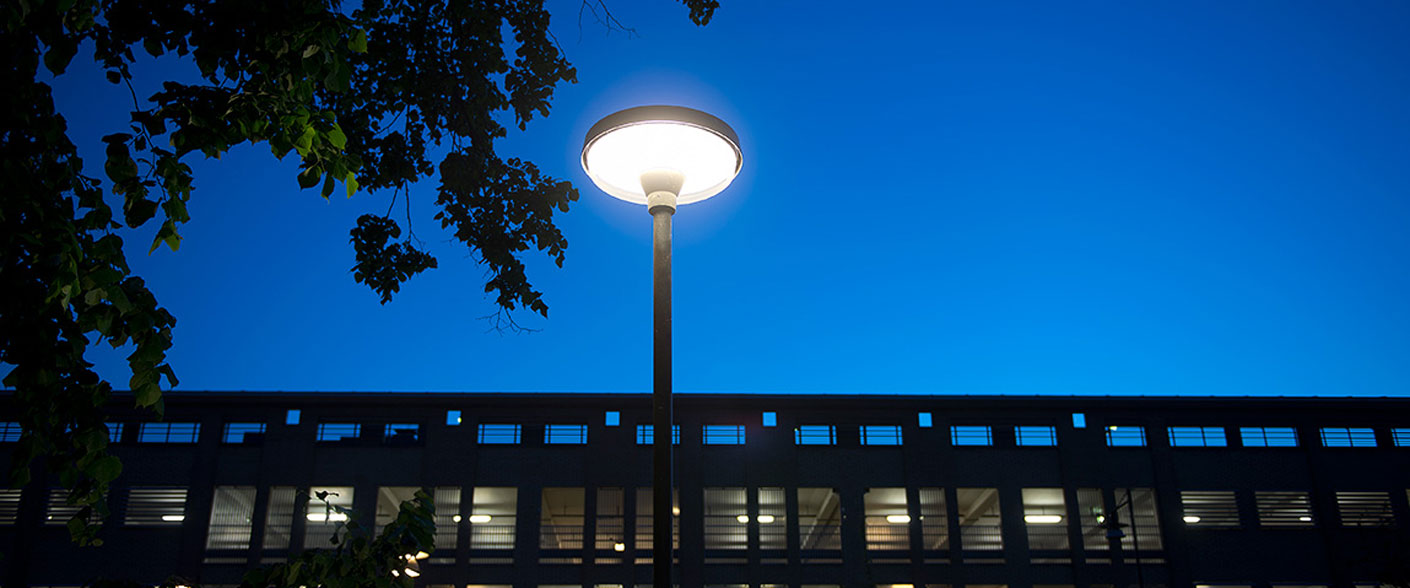

Combining exceptional visual comfort and a classic design with cost-effectiveness, Lunova is the perfect choice when it comes to omnidirectional post luminaires for park and close-to-the-building environments.

Lunova creates...

More about the family Lunova

Document

Instruction for use

Cleaning instruction

DWG

3Ds

MAX

Revit

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
no-image placeholder Wall bracket Wall bracket post top Ø 60, black (RAL 9005 G70). 303679-224
no-image placeholder Wall bracket Wall bracket post top Ø 60, black (RAL 9005 texture). 303679-230
Wall bracket Wall bracket post top Ø 60, alu-grey (RAL 9006 G70). 303679-235
Wall bracket Wall bracket post top Ø 60, anthracite grey (Gris 900 Sablé). 303679-329
no-image placeholder Wall bracket Wall bracket post top Ø 60, traffic grey (RAL 7042 G70). 303679-548
no-image placeholder Wall bracket Wall bracket post top Ø 60, graphite grey (RAL 7024 G70). 303679-549
no-image placeholder Wall bracket Wall bracket post top Ø 60, green (RAL 6009 G70). 303679-552
Citygrid dongle Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. 86490
Citygrid On Pole The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. 86492
Citygrid Gateway Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. 86495
Citygrid On Pole mounting kit for gateway Citygrid Gateway Pole Kit with 2-wire 8 m cable. Enables mounting on poles. 86496
