Lepo LED

Installation
Two-point suspension c/c 55–78 mm in ceiling cups for single installation. Luminaire 1 in an installation for series installation is installed using wire loops in the ceiling. Luminaires 2–5 in an installation are installed using wire loops in subsequent luminaire’s undersides. Ceiling cups for luminaires for series installation are not included, must be ordered separately. Ceiling cups are installed next to wire loops.

Connection
Snap-in terminal block 5 x 1.5 mm2, through-wiring is possible. Luminaire for continuous installation has strain relief and snap-in block at the bottom. With ramp mounting the lowest luminaire must be a standard.

Design
Luminaire shades made of matt opal acrylic, screen holder made of silver-coated steel. Supplied with white fabric cord and white high gloss ceiling cup made of steel. Luminaires for series installation are supplied with separate wire and wire lock.

Max. pendant length: 3,5 m.

Dimming
DALI/phase-pulse control as standard.

Designed by
Sabina Grubbe.

LED-information
3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM. Driver life-time: up to 100.000 h/10 % (max failure).

Miscellaneous
A cut-out in the ceiling cup is made using cutters 94248 for a surface mounted mains cable.

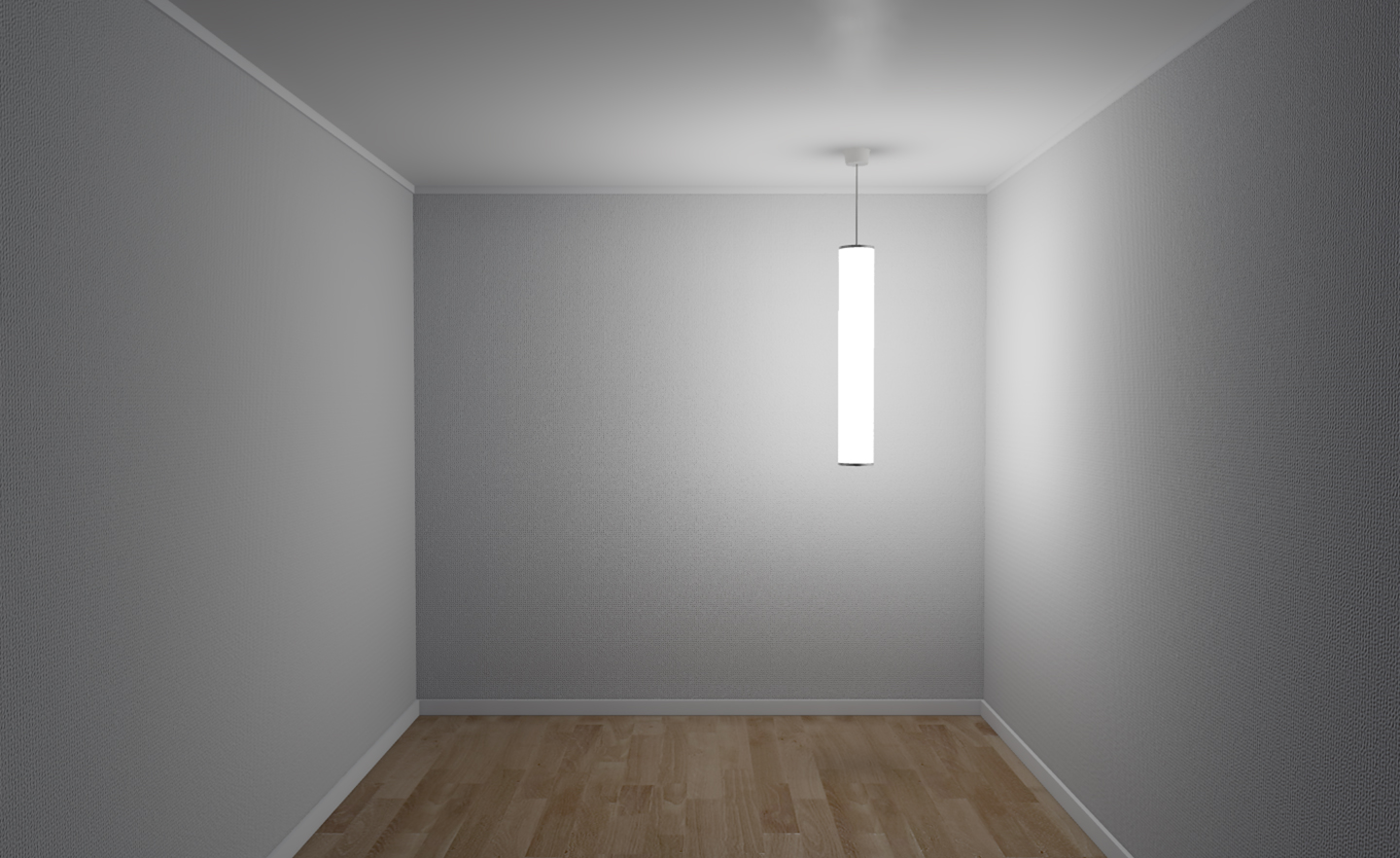

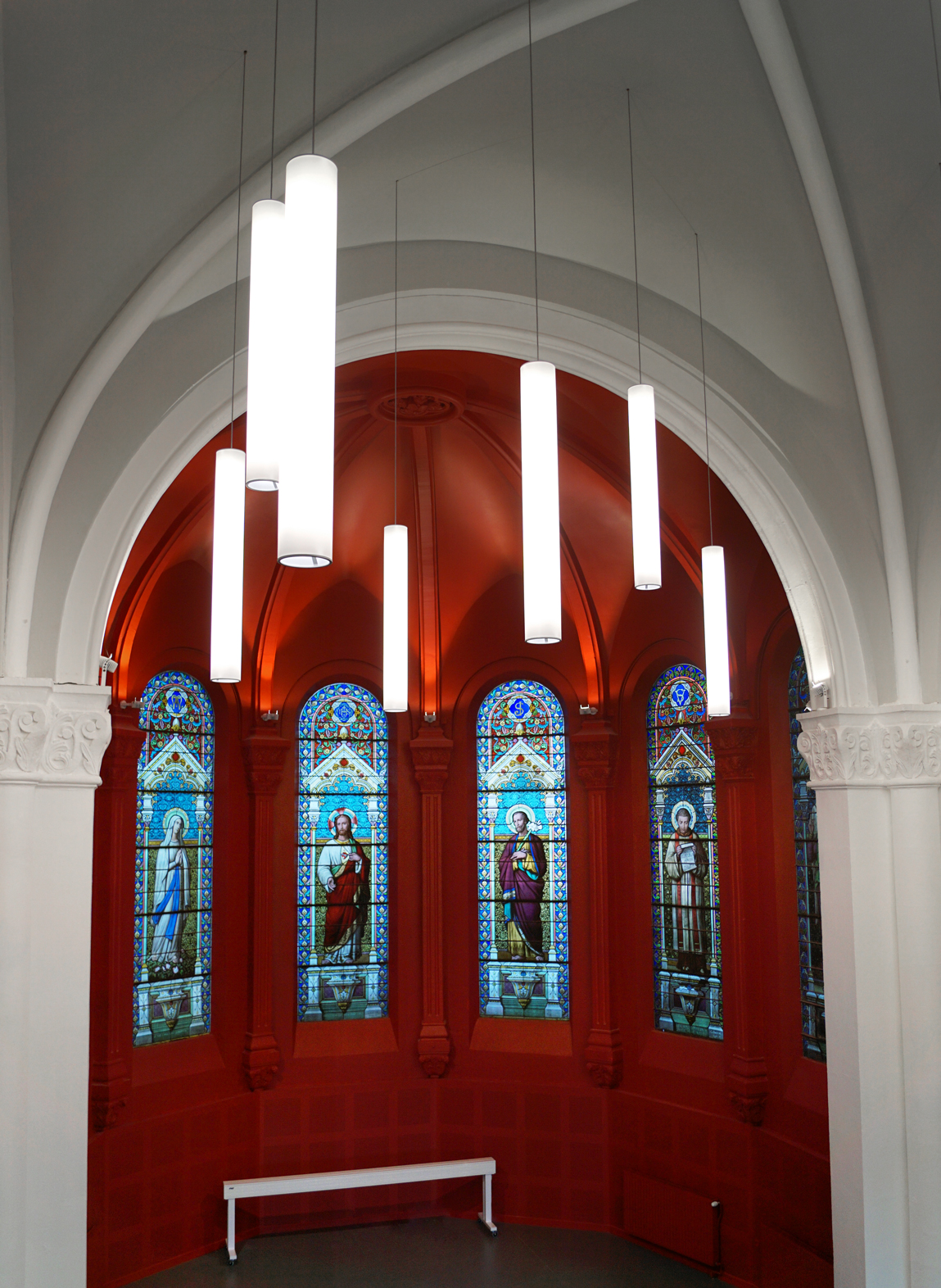

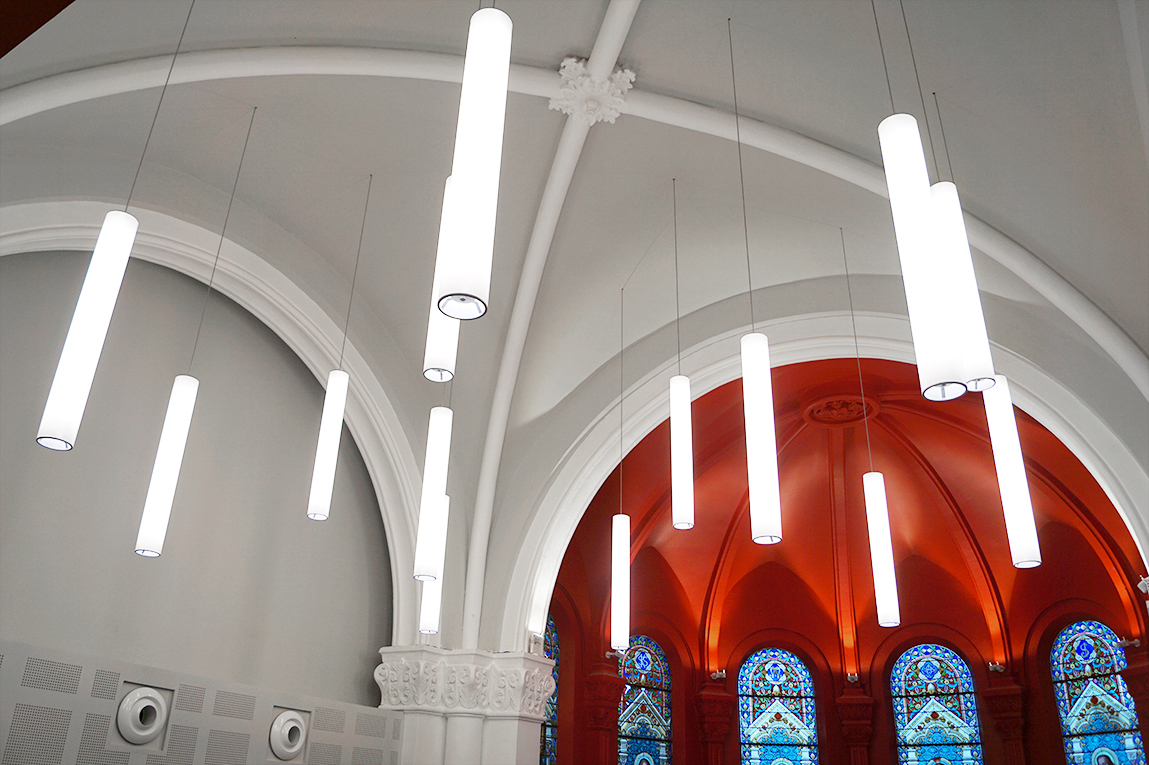

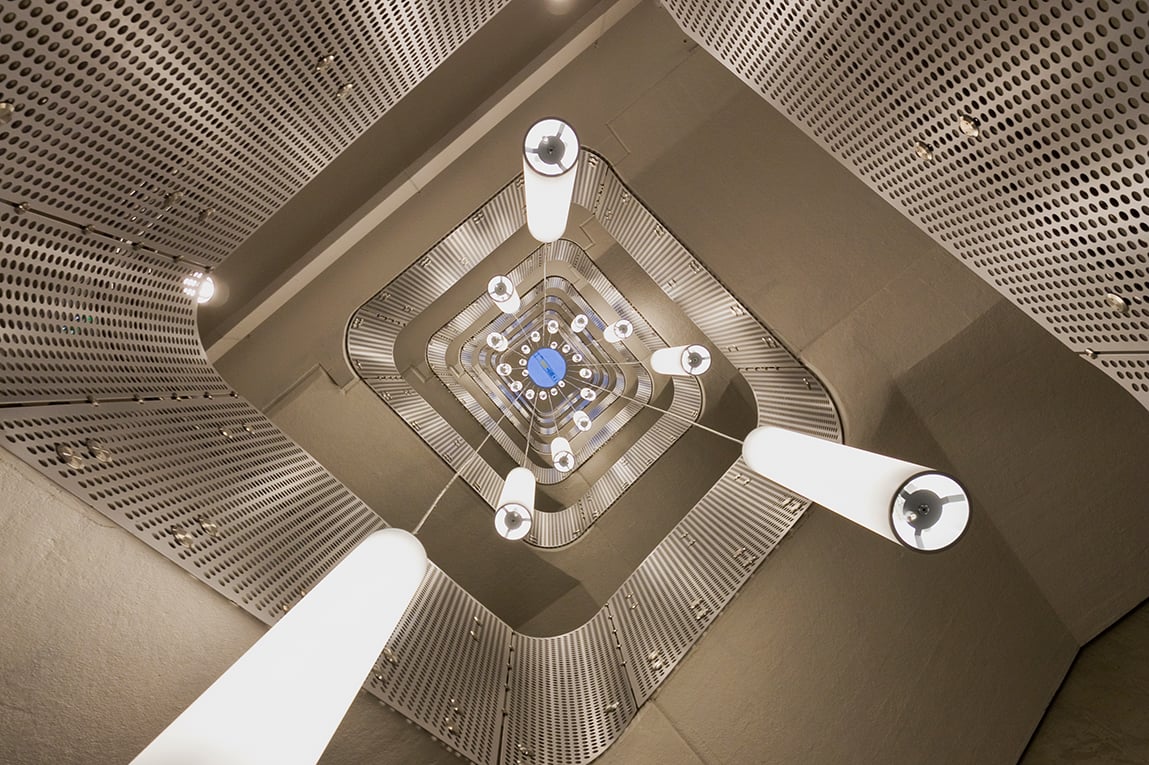

Environment images


Details

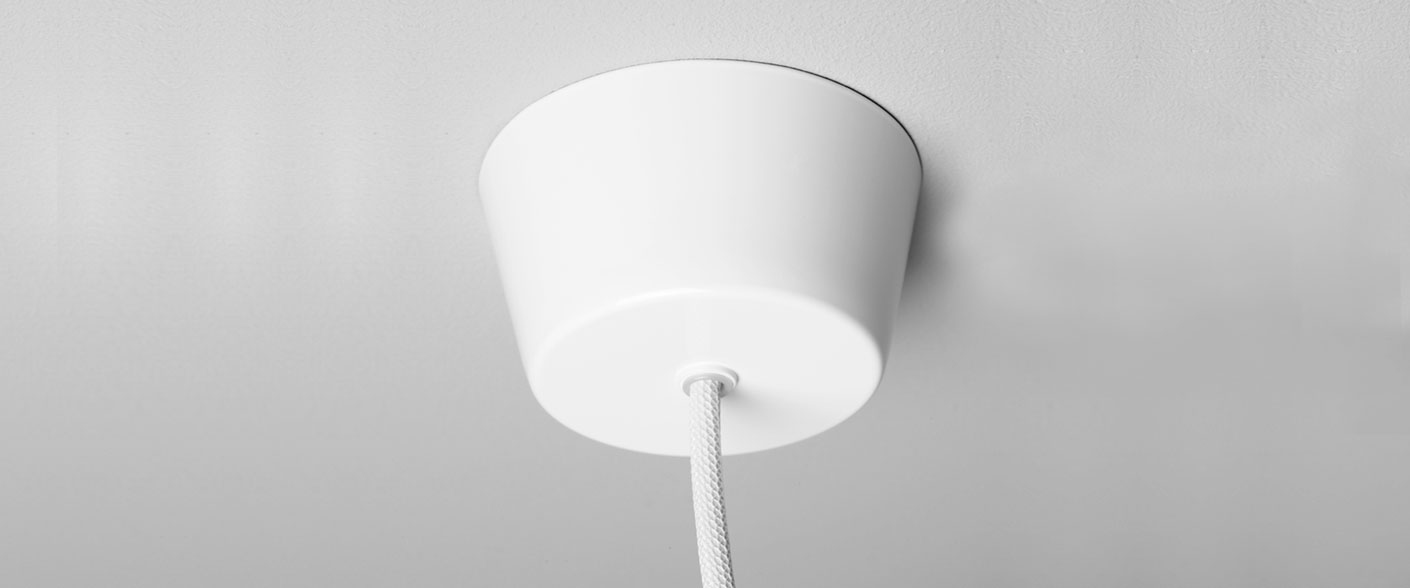

Steel ceiling cup attached using magnets; avoiding visible screws.

Steel ceiling cup attached using magnets; avoiding visible screws.

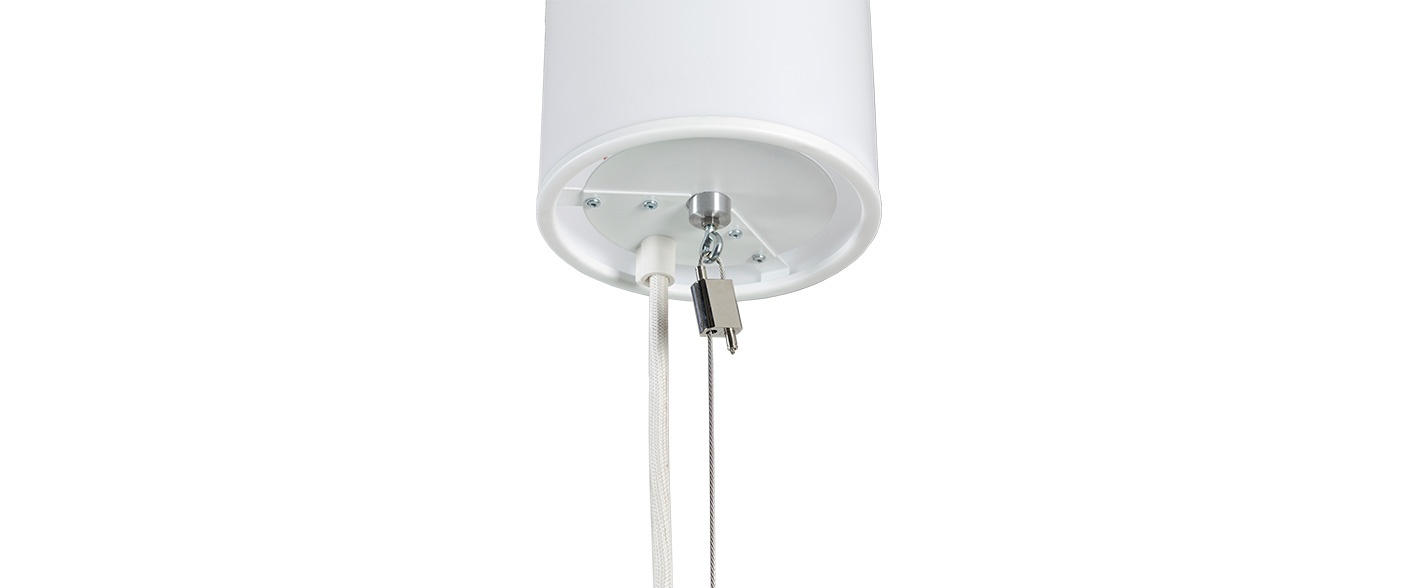

Continuous installation.

Continuous installation.

Continuous installation.

Continuous installation.

Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Weight, kg Height, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
Continuous installation
18 2.6 680 3000 1860 102 L90B50 50.000 h 54666-402
18 2.6 680 4000 1881 104 L90B50 50.000 h 54667-402
27 3.1 980 3000 2950 109 L90B50 50.000 h 54668-402
27 3.1 980 4000 3016 111 L90B50 50.000 h 54669-402
36 3.6 1280 3000 4040 112 L90B50 50.000 h 54670-402
36 3.6 1280 4000 4124 114 L90B50 50.000 h 54671-402
Single
18 2.3 680 3000 1860 102 L90B50 50.000 h 54660-402
18 2.3 680 4000 1881 104 L90B50 50.000 h 54661-402
27 2.8 980 3000 2950 109 L90B50 50.000 h 54662-402
27 2.8 980 4000 3016 111 L90B50 50.000 h 54663-402
36 3.3 1280 3000 4040 112 L90B50 50.000 h 54664-402
36 2.3 1280 4000 4124 114 L90B50 50.000 h 54665-402

Ceiling cup Lepo LED

Ceiling cup for continuous installation

Art.No.
Ceiling cup for continuous installation 91157

Cutters

Cutters for outlet in ceiling cups with surface mounted mains cable.

Art.No.
Cutters, each 94248
