Indigo LED

Installation
Recessed mounting in suspended ceilings. Unventilated or ventilated ceilings. Two optional designs:
VTB – for suspended ceilings with visible T-bars (25 or 15 mm).
HB – for suspended ceilings with concealed T-bars and symmetrical ceiling tiles. Four suspension fittings included. For fixed roofs (plaster etc.) suspension fittings for an HB body can be ordered separately.

Connection
Connected to 2.5 mm² 3-way terminal block with the possibility of through-wiring. With additional suffix code for 5-way terminal block dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector.

Design
Luminaire body of white enamelled (RAL 9016) sheet steel.

Louvre
Diffuser in opal acrylic.

LED-information
3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 100.000 h/10 % (max failure).

Miscellaneous
The luminaire has a switch for high/low flow easily accessible at the rear of the luminaire. Always delivered set at high flow.
Weight: 4.9 kg.

Environment images


Details

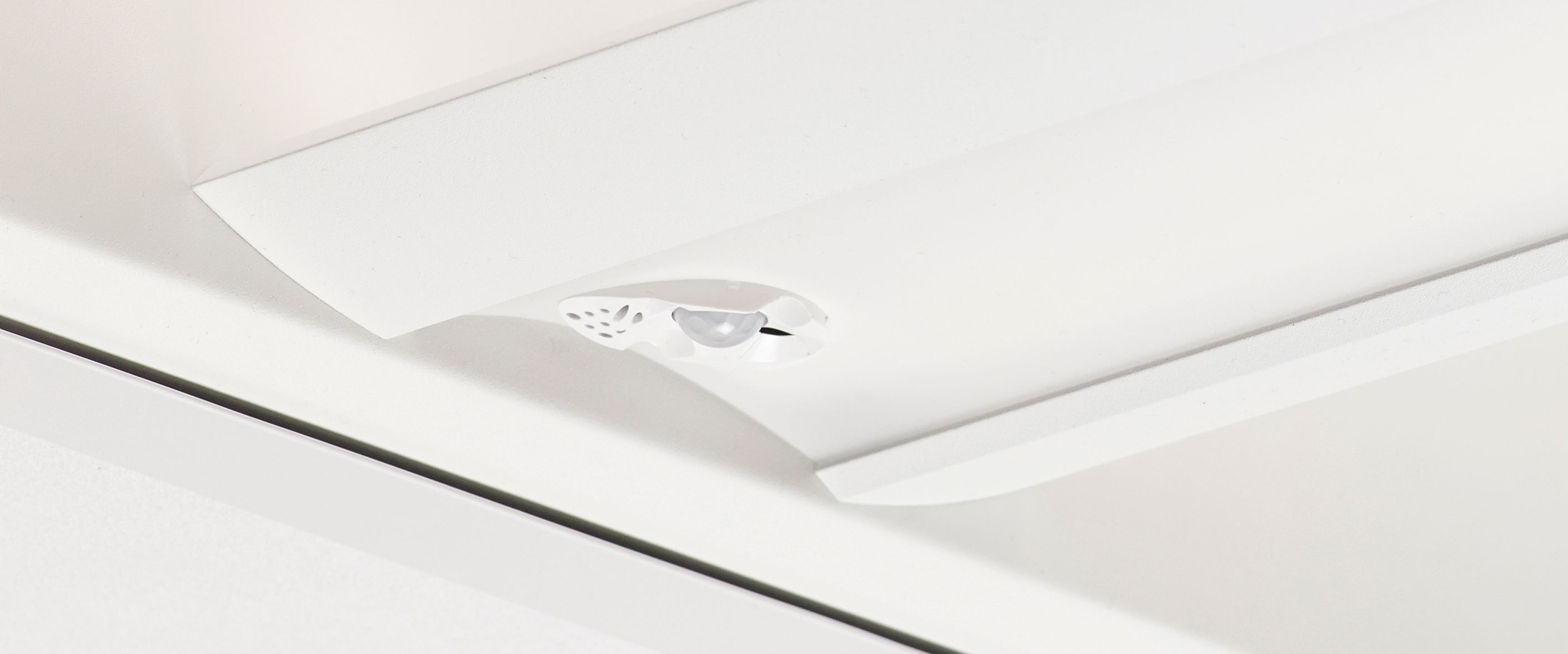

Luminaire with integrated e-Sense Organic sensor node.

Luminaire with integrated e-Sense Organic sensor node.

The luminaire has a switch for high/low flow easily accessible at the rear of the luminaire.

The luminaire has a switch for high/low flow easily accessible at the rear of the luminaire.

Marking of product sheet

Document added to your cart

References



Svalöv Sportcenter

Sports and exhibitions

Text som beskriver tabellen
W Module CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
28 600x600 3000 2750 98 L80B10 65.000 h 24656
28 600x600 4000 2806 100 L80B10 65.000 h 24657
43 600x600 3000 4097 95 L80B10 65.000 h 24652
44 600x600 4000 4181 95 L80B10 65.000 h 24653
Visible T-bars (VTB)
28 600x600 3000 2750 98 L80B10 65.000 h 24654
28 600x600 4000 2806 100 L80B10 65.000 h 24655
43 600x600 3000 4097 95 L80B10 65.000 h 24650
44 600x600 4000 4181 95 L80B10 65.000 h 24651
Text som beskriver tabellen
W Module CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
28 600x600 3000 2750 98 L80B10 65.000 h 24656-402
28 600x600 4000 2806 100 L80B10 65.000 h 24657-402
43 600x600 3000 4097 95 L80B10 65.000 h 24652-402
44 600x600 4000 4181 95 L80B10 65.000 h 24653-402
Visible T-bars (VTB)
28 600x600 3000 2750 98 L80B10 65.000 h 24654-402
28 600x600 4000 2806 100 L80B10 65.000 h 24655-402
43 600x600 3000 4097 95 L80B10 65.000 h 24650-402
44 600x600 4000 4181 95 L80B10 65.000 h 24651-402
Text som beskriver tabellen
W Module CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
28 600x600 3000 2750 98 L80B10 65.000 h 24656-3
28 600x600 4000 2806 100 L80B10 65.000 h 24657-3
43 600x600 3000 4097 95 L80B10 65.000 h 24652-3
44 600x600 4000 4181 95 L80B10 65.000 h 24653-3
Visible T-bars (VTB)
28 600x600 3000 2750 98 L80B10 65.000 h 24654-3
28 600x600 4000 2806 100 L80B10 65.000 h 24655-3
43 600x600 3000 4097 95 L80B10 65.000 h 24650-3
44 600x600 4000 4181 95 L80B10 65.000 h 24651-3
Text som beskriver tabellen
W Module CCT (K) lm lm/W Useful life Art.No.
LED (system)
Visible T-bars (VTB)
43 600x600 3000 4097 95 L80B10 65.000 h 24650-492
44 600x600 4000 4181 95 L80B10 65.000 h 24651-492
Text som beskriver tabellen
W Module CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
28 600x600 3000 2750 98 L80B10 65.000 h 24656-454
28 600x600 4000 2806 100 L80B10 65.000 h 24657-454
43 600x600 3000 4097 95 L80B10 65.000 h 24652-454
44 600x600 4000 4181 95 L80B10 65.000 h 24653-454
Visible T-bars (VTB)
28 600x600 3000 2750 98 L80B10 65.000 h 24654-454
28 600x600 4000 2806 100 L80B10 65.000 h 24655-454
43 600x600 3000 4097 95 L80B10 65.000 h 24650-454
44 600x600 4000 4181 95 L80B10 65.000 h 24651-454
Text som beskriver tabellen
W Module CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
28 600x600 3000 2750 98 L80B10 65.000 h 24656-456
28 600x600 4000 2806 100 L80B10 65.000 h 24657-456
43 600x600 3000 4097 95 L80B10 65.000 h 24652-456
44 600x600 4000 4181 95 L80B10 65.000 h 24653-456
Visible T-bars (VTB)
28 600x600 3000 2750 98 L80B10 65.000 h 24654-456
28 600x600 4000 2806 100 L80B10 65.000 h 24655-456
43 600x600 3000 4097 95 L80B10 65.000 h 24650-456
44 600x600 4000 4181 95 L80B10 65.000 h 24651-456
Text som beskriver tabellen
W Module CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
28 600x600 3000 2750 98 L80B10 65.000 h 24656-340
28 600x600 4000 2806 100 L80B10 65.000 h 24657-340
43 600x600 3000 4097 95 L80B10 65.000 h 24652-340
44 600x600 4000 4181 95 L80B10 65.000 h 24653-340
Visible T-bars (VTB)
28 600x600 3000 2750 98 L80B10 65.000 h 24654-340
28 600x600 4000 2806 100 L80B10 65.000 h 24655-340
43 600x600 3000 4097 95 L80B10 65.000 h 24650-340
44 600x600 4000 4181 95 L80B10 65.000 h 24651-340
Text som beskriver tabellen
W Module CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
28 600x600 3000 2750 98 L80B10 65.000 h 24656-111
28 600x600 4000 2806 100 L80B10 65.000 h 24657-111
43 600x600 3000 4097 95 L80B10 65.000 h 24652-111
44 600x600 4000 4181 95 L80B10 65.000 h 24653-111
Visible T-bars (VTB)
28 600x600 3000 2750 98 L80B10 65.000 h 24654-111
28 600x600 4000 2806 100 L80B10 65.000 h 24655-111
43 600x600 3000 4097 95 L80B10 65.000 h 24650-111
44 600x600 4000 4181 95 L80B10 65.000 h 24651-111

e-Sense Organic Accessories

Art.No.
IR dongle for e-Sense Organic equipped luminaire. To be used with Android or iOS device with Organic Response Remote App found i App Store and Google Play. 86279
e-Sense Organic Sensor Node (gen 2) 86280
e-Sense Organic Controller DALI/1–10 V type 2 86281
e-Sense Organic Sensor Node cable 50 cm incl. earth spade. (Suitable for Controller 86281) 86282
e-Sense Organic Sensor Node cable 100 cm incl. earth spade. (Suitable for Controller 86281) 86283
e-Sense Organic Wall Panel 2 (6 button) 86284
e-Sense Organic Ethernet Gateway Kit 86285
e-Sense Organic Sensor Node Link Kit 86286
e-Sense Organic External Sensor Node Housing, plastic. Requires cable with Earth Spade. 86287

Fixing brackets

Art.No.

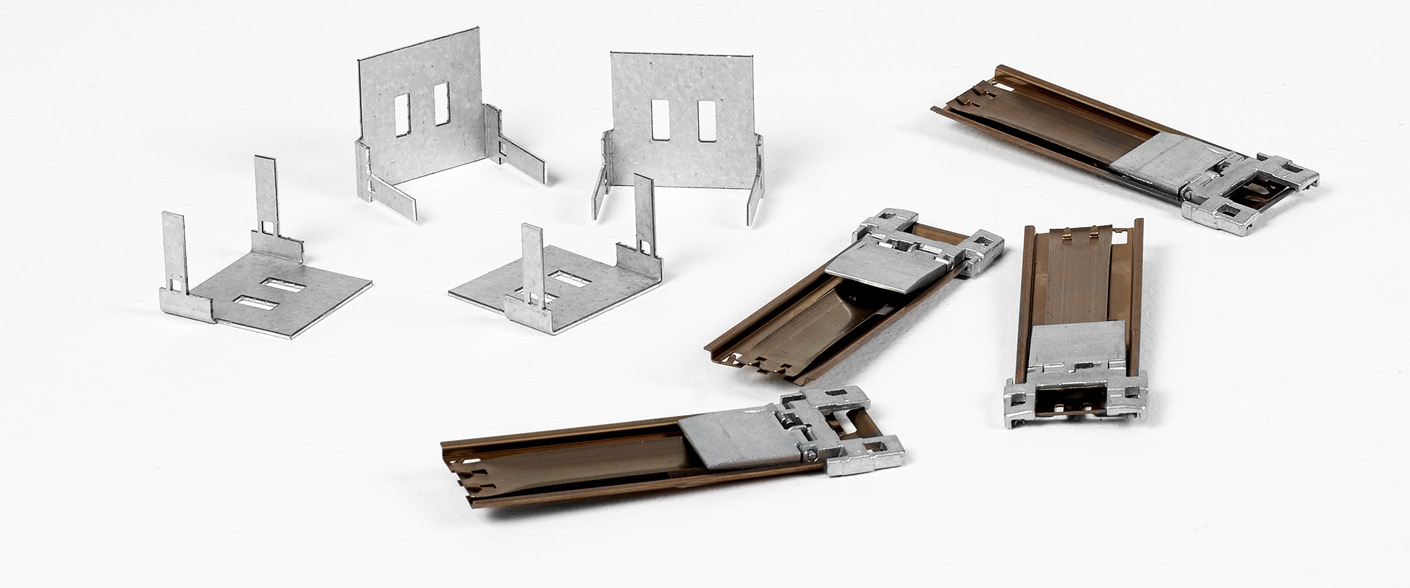

Fixing brackets/4 pcs. 91272
