Globia LED

A round beam decorative luminaire in three sizes for entrances and stairwells, for example.

Installation

Two point suspension, c/c 70 mm.

Connection

Snap-in terminal block 5x1.5 mm², 1-phase through-wiring possible.

Design

Ceiling cup of white ABS-plastic or specular metal. Luminaire fitting in white (RAL 9003) or chrome plated metal. Frosted opal glass globe or acrylic, PMMA. Supplied with fabric cord. Ø 300 mm: 2.0 m. Ø 400–450 mm: 2.5 m.

Dimming

DALI/Phase-pulse control as standard.

Miscellaneous

A cut-out in the ceiling cup is made using cutters 94248 for a surface mounted mains cable.

Media

Document

Specification

Filter

Art.no. Lumen output CCT, K Diameter, mm Colour Light control Miscellaneous
Art.no. Lumen output CCT, K Diameter, mm Colour Light control Miscellaneous
53400-402 2414 3000 300 White DALI/Phase-pulse Acrylic
53401-402 2463 4000 300 White DALI/Phase-pulse Acrylic
53402-402 2898 3000 400 White DALI/Phase-pulse Acrylic
53403-402 2957 4000 400 White DALI/Phase-pulse Acrylic
53404-402 2854 3000 450 White DALI/Phase-pulse Acrylic
53405-402 2912 4000 450 White DALI/Phase-pulse Acrylic
53406-402 5707 3000 450 White DALI/Phase-pulse Acrylic
53407-402 5823 4000 450 White DALI/Phase-pulse Acrylic
53408-402 2414 3000 300 Specular metal DALI/Phase-pulse Acrylic
53409-402 2463 4000 300 Specular metal DALI/Phase-pulse Acrylic
53410-402 2898 3000 400 Specular metal DALI/Phase-pulse Acrylic
53411-402 2957 4000 400 Specular metal DALI/Phase-pulse Acrylic
53412-402 2854 3000 450 Specular metal DALI/Phase-pulse Acrylic
53413-402 2912 4000 450 Specular metal DALI/Phase-pulse Acrylic
53414-402 5707 3000 450 Specular metal DALI/Phase-pulse Acrylic
53415-402 5823 4000 450 Specular metal DALI/Phase-pulse Acrylic
53565-402 5529 3000 450 White DALI/Phase-pulse Glass
53566-402 5642 4000 450 White DALI/Phase-pulse Glass
53567-402 5529 3000 450 Specular metal DALI/Phase-pulse Glass
53568-402 5642 4000 450 Specular metal DALI/Phase-pulse Glass
53583-402 2339 3000 300 White DALI/Phase-pulse Glass
53584-402 2387 4000 300 White DALI/Phase-pulse Glass
53585-402 2808 3000 400 White DALI/Phase-pulse Glass
53586-402 2865 4000 400 White DALI/Phase-pulse Glass
53587-402 2765 3000 450 White DALI/Phase-pulse Glass
53588-402 2821 4000 450 White DALI/Phase-pulse Glass
53589-402 2339 3000 300 Specular metal DALI/Phase-pulse Glass
53590-402 2387 4000 300 Specular metal DALI/Phase-pulse Glass
53591-402 2808 3000 400 Specular metal DALI/Phase-pulse Glass
53592-402 2865 4000 400 Specular metal DALI/Phase-pulse Glass
53593-402 2765 3000 450 Specular metal DALI/Phase-pulse Glass
53594-402 2821 4000 450 Specular metal DALI/Phase-pulse Glass

Filter

Name Description Art.No.
Name Description Art.No.
CuttersCutters, each94248

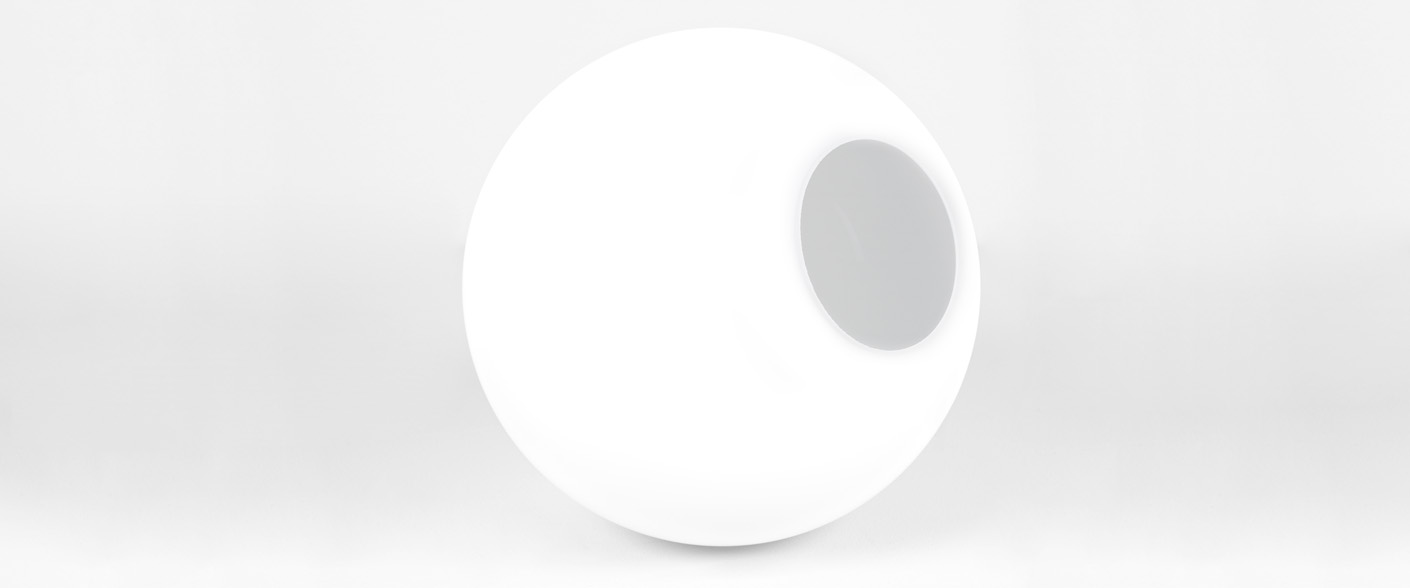

Spare glass globeSpare glass globe Ø 450 mm93214
Spare glass globeSpare glass globe Ø 300 mm93218
Spare glass globeSpare glass globe Ø 400 mm93264
