Eira

Installation
Two securing holes for ceiling installation. IP 20.
Some models can be covered with insulation. For further details please refer to the assembly instructions on our website.

Connection
Snap-in terminal block 5 x 2.5 mm², 1-phase through-wiring possible. Cable entry from top of the luminaire.

Design
Diffuser in specular opal acrylic. The Ø 550 mm version is equipped with a performance ring consisting of high-power LEDs and acrylic lenses.

Dimming
DALI/Phase-pulse control as standard. Eira Ø 550 requires two addresses for DALI.

LED-information
3000/4000 K CRI min. 90, MacAdam 3 SDCM.

Driver life-time: up to 50.000 h/10 % (max failure).

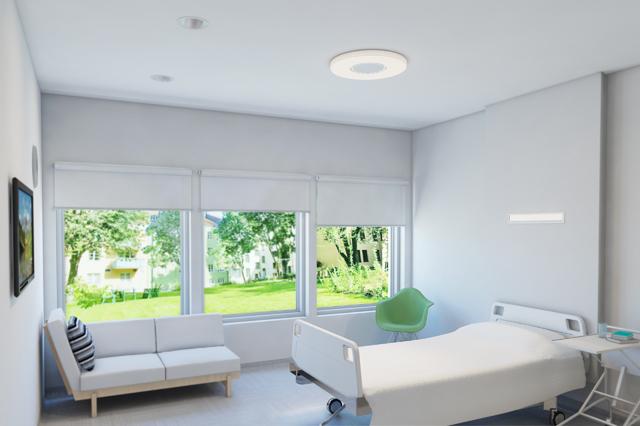

Environment images


Details

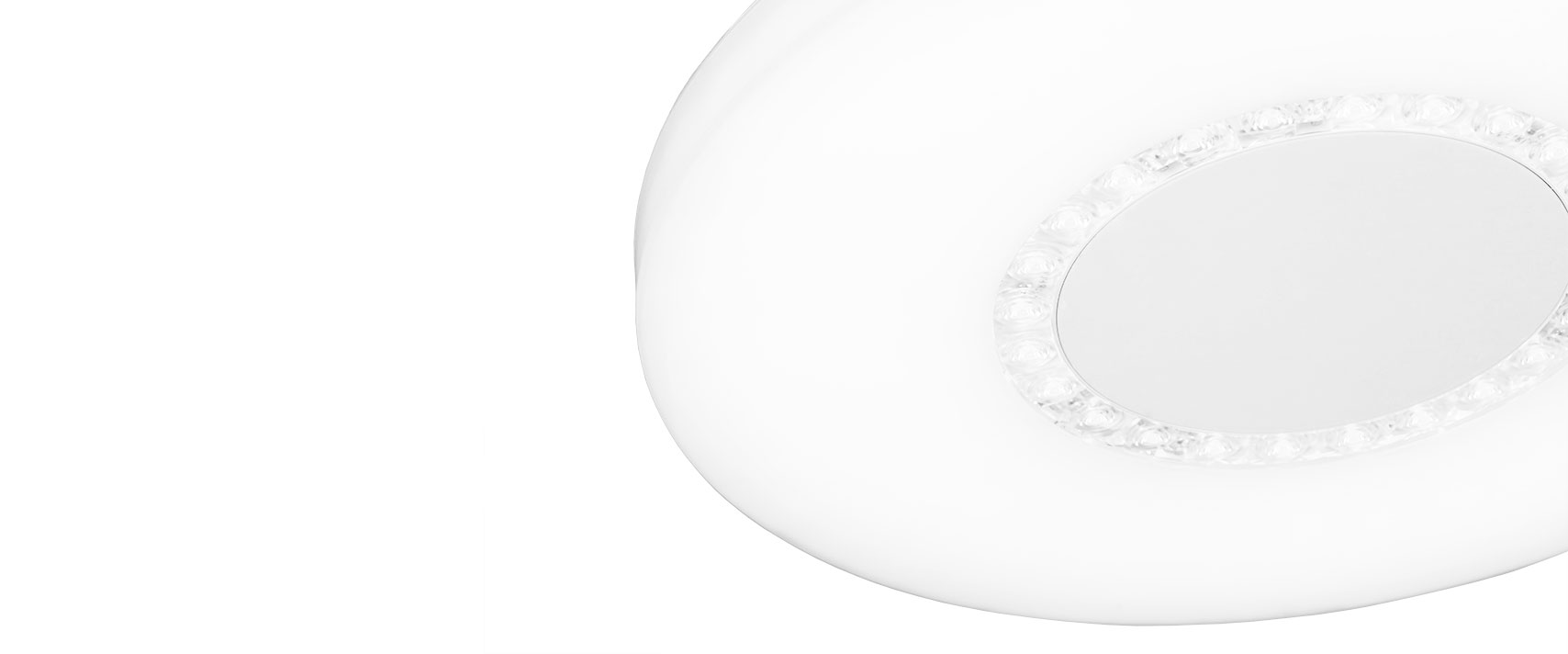

Specially made lenses to create a uniform ring of light as well as controlling the light and preventing glare.

Specially made lenses to create a uniform ring of light as well as controlling the light and preventing glare.

Recessed in the ceiling with separate recessed box for ceiling thickness of 1–46 mm.

Recessed in the ceiling with separate recessed box for ceiling thickness of 1–46 mm.

Marking of product sheet

Document added to your cart

References



Linköping University Hospital - Phase 1

65 000 sq m with light from Fagerhult


Haga Teaching Hospital

In line with human centric lighting

Text som beskriver tabellen
W Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)

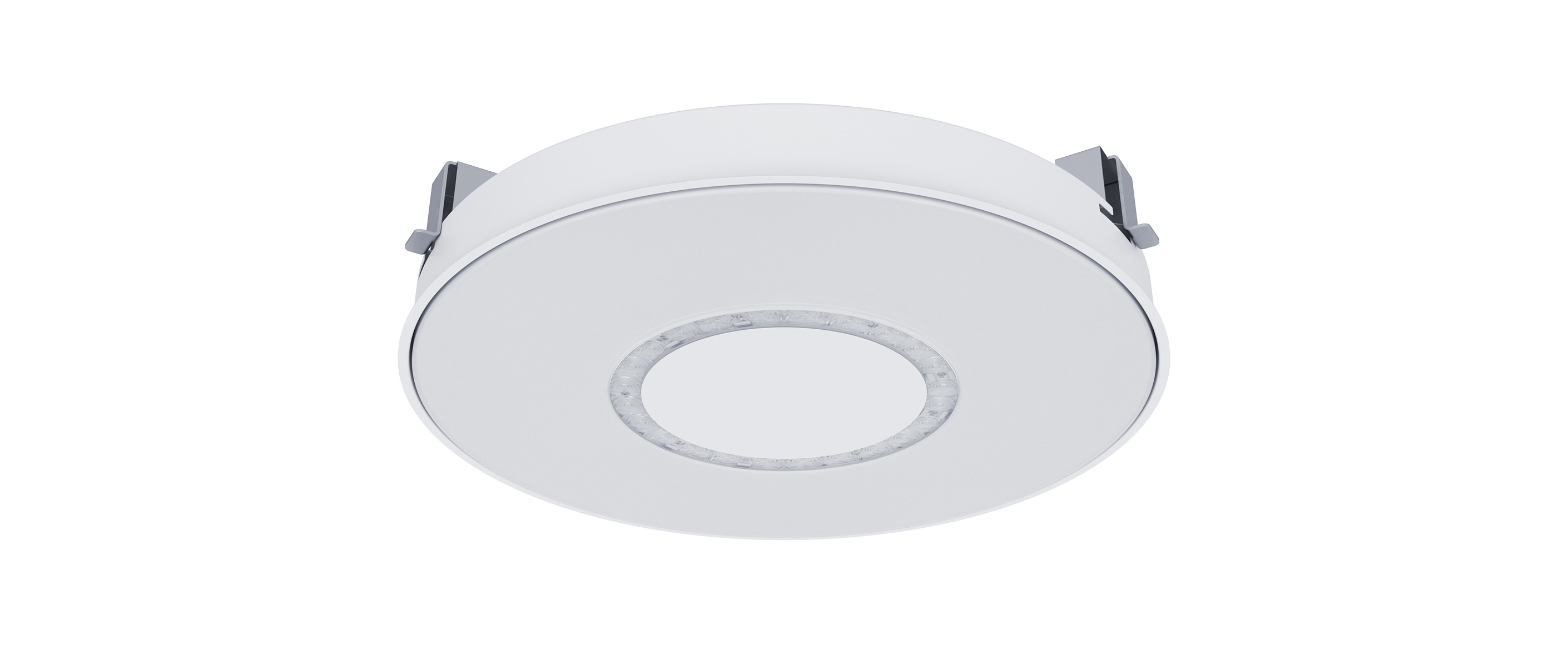

Recessed
26 400 4000 2918 112 L90B50 65.000 h 56796-402
26 400 3000 2653 102 L90B50 65.000 h 56797-402
55 550 4000 5683 103 L90B50 65.000 h 56794-402
55 550 3000 5360 97 L90B50 65.000 h 56795-402
Surface mounted
26 400 4000 3368 128 L90B10 50.000 h 56807-402
26 400 3000 3073 118 L90B10 50.000 h 56808-402
55 550 4000 6133 112 L90B10 50.000 h 56805-402
55 550 3000 5750 105 L90B10 50.000 h 56806-402

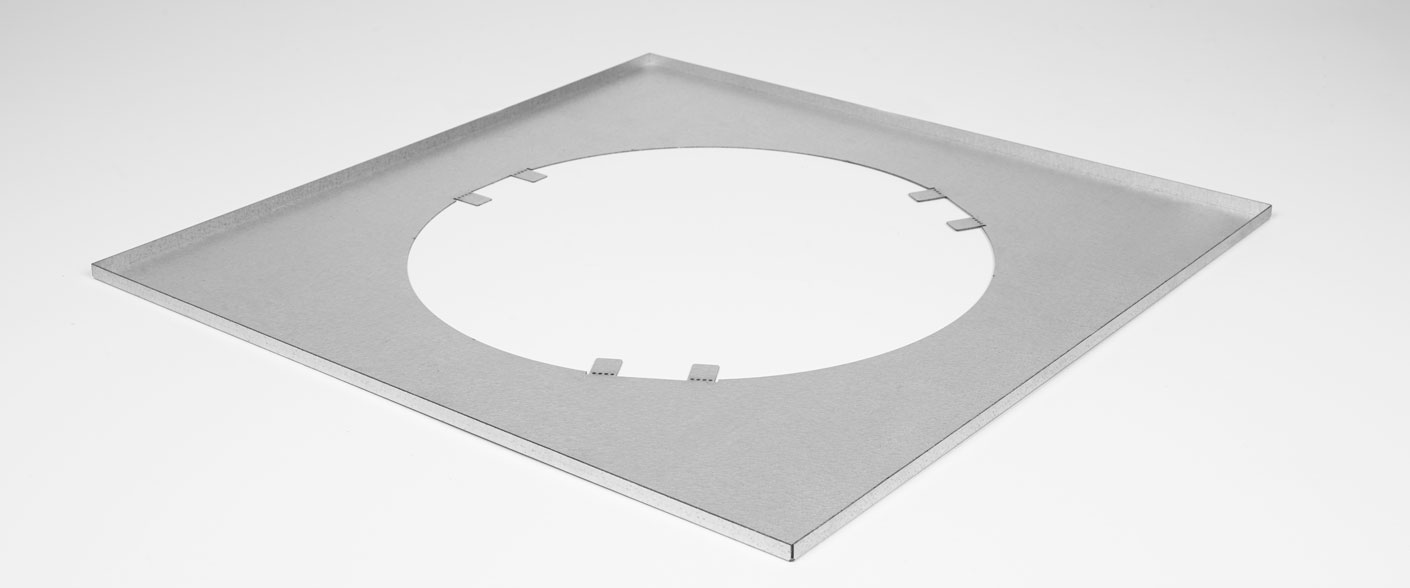

Assembly plate

Art.No.
Assembly plate Ø 400, 600-module visible T-bars 94070
Assembly plate Ø 550, 600-module visible T-bars 94071
Assembly plate Ø 400, 625-module visible T-bars 94072
Assembly plate Ø 550, 625-module visible T-bars 94073

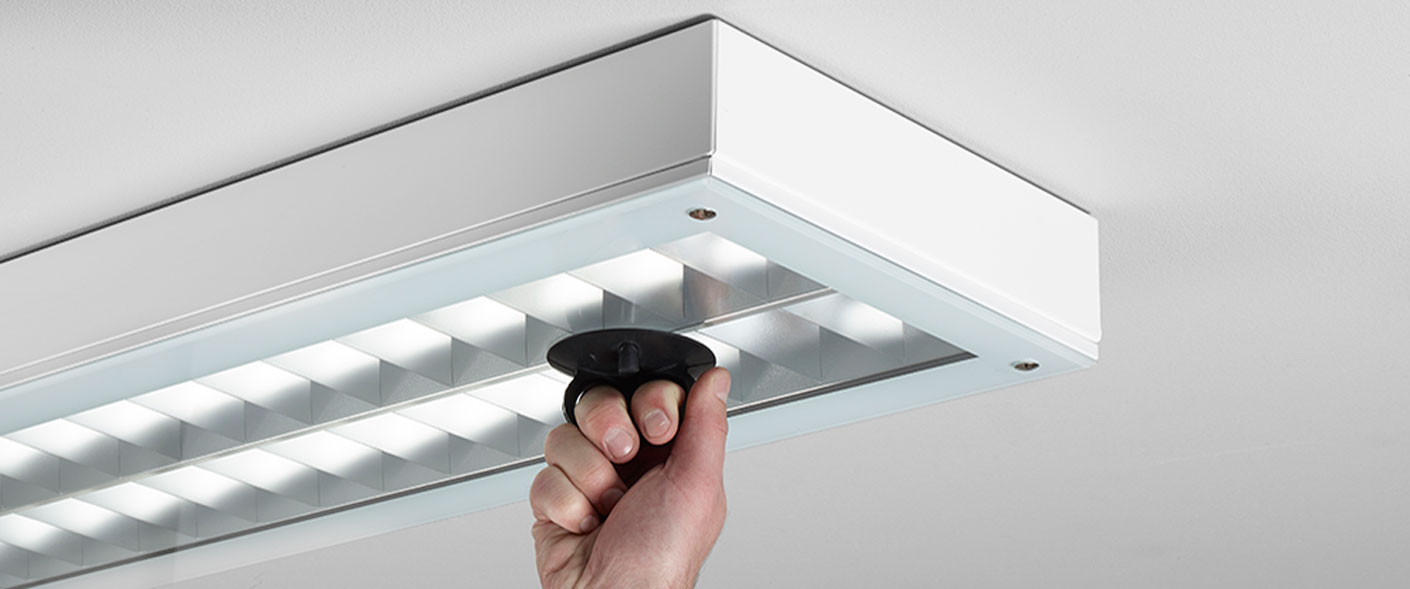

Glass frame suction pad

Glass frame suction pad. The louvre module is secured using internal spring clips. The module is pushed up from below into its natural position. A glass frame suction pad is recommended when dismantling.

Art.No.
Glass frame suction pad 94295
Dimensions picture

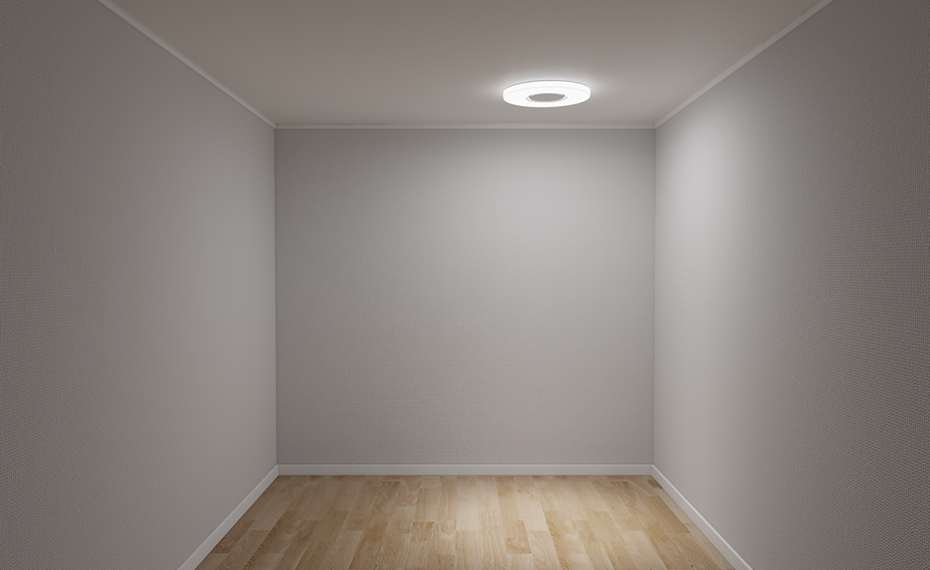

Light distribution
Ø 550, opal

Ø 550, opal

Ø 550, complete luminaire

Ø 550, complete luminaire

Ø 550, performance ring

Ø 550, performance ring
