Combilume Ceiling

Installation
Surface mounted.

Connection
Connection is made at the end of the luminaire, see the dimensional drawing. Option of cable entry in the end-caps and middle of the luminaire. 5-way snap-in terminal block at one end of the luminaire, 1-phase through-wiring possible.

Design
Luminaire body of extruded aluminium in white (RAL 9016) or alu-grey (RAL 9006) textured enamel.

Louvre
Delta – microprism louvre in acrylic (PMMA) with good optical characteristics.
Opal – plate in frosted acrylic (PMMA).

LED-information
3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 50.000 h/10 % (max failure).

Miscellaneous
Combilume uses side emitting LED technology for a glare-free light.

Environment images


Details


Combilume ceiling mounted with Delta louvre.

Combilume ceiling mounted with Delta louvre.

Surface mounted connection cable entry is possible at the side of the luminaire.

Surface mounted connection cable entry is possible at the side of the luminaire.

Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Louvre Weight, kg Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Module 300x1200
42 Opal 9.9 White 4000 4500 108 L80B50 75.000 h 12049
42 Opal 9.9 Alu grey 4000 4500 108 L80B50 75.000 h 12062
42 Delta 9.9 Alu grey 4000 4600 102 L80B50 75.000 h 12066
42 Opal 9.9 White 3000 4450 106 L80B50 75.000 h 12072
42 Opal 9.9 Alu grey 3000 4450 106 L80B50 75.000 h 12079
42 Delta 9.9 Alu grey 3000 4500 100 L80B50 75.000 h 12083
45 Delta 9.9 White 4000 4600 102 L80B50 75.000 h 12053
45 Delta 9.9 White 3000 4500 100 L80B50 75.000 h 12076
Module 300x600
26 Delta 5.0 White 3000 2450 93 L80B50 75.000 h 12088
26 Delta 5.0 Alu grey 3000 2450 93 L80B50 75.000 h 12090
27 Opal 4.5 White 4000 2450 92 L80B50 75.000 h 12048
27 Opal 4.5 Alu grey 4000 2450 92 L80B50 75.000 h 12061
27 Opal 4.5 White 3000 2450 90 L80B50 75.000 h 12071
27 Opal 4.5 Alu grey 3000 2450 90 L80B50 75.000 h 12078
28 Delta 5.0 White 4000 2600 93 L80B50 75.000 h 12089
28 Delta 5.0 Alu grey 4000 2600 93 L80B50 75.000 h 12091
Module 600x600
44 Opal 9.0 White 4000 4550 104 L80B50 75.000 h 12050
44 Opal 9.0 Alu grey 4000 4550 104 L80B50 75.000 h 12063
44 Opal 9.0 White 3000 4500 102 L80B50 75.000 h 12073
44 Opal 9.0 Alu grey 3000 4500 102 L80B50 75.000 h 12080
50 Delta 9.5 White 3000 4900 98 L80B50 75.000 h 12092
50 Delta 9.5 White 4000 5000 100 L80B50 75.000 h 12093
50 Delta 9.5 Alu grey 3000 4900 98 L80B50 75.000 h 12094
50 Delta 9.5 Alu grey 4000 5000 100 L80B50 75.000 h 12095
Text som beskriver tabellen
W Louvre Weight, kg Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Module 300x1200
42 Opal 9.9 White 4000 4500 108 L80B50 75.000 h 12049-402
42 Opal 9.9 Alu grey 4000 4500 108 L80B50 75.000 h 12062-402
42 Delta 9.9 Alu grey 4000 4600 102 L80B50 75.000 h 12066-402
42 Opal 8.0 White 3000 4450 106 L80B50 75.000 h 12072-402
42 Opal 9.9 Alu grey 3000 4450 106 L80B50 75.000 h 12079-402
42 Delta 9.9 Alu grey 3000 4500 100 L80B50 75.000 h 12083-402
45 Delta 9.9 White 4000 4600 102 L80B50 75.000 h 12053-402
45 Delta 9.9 White 3000 4500 100 L80B50 75.000 h 12076-402
Module 300x600
26 Delta 5.0 White 3000 2450 93 L80B50 75.000 h 12088-402
26 Delta 5.0 Alu grey 3000 2450 93 L80B50 75.000 h 12090-402
27 Opal 4.5 White 4000 2450 92 L80B50 75.000 h 12048-402
27 Opal 4.5 Alu grey 4000 2450 92 L80B50 75.000 h 12061-402
27 Opal 4.5 White 3000 2450 90 L80B50 75.000 h 12071-402
27 Opal 4.5 Alu grey 3000 2450 90 L80B50 75.000 h 12078-402
28 Delta 5.0 White 4000 2600 93 L80B50 75.000 h 12089-402
28 Delta 5.0 Alu grey 4000 2600 93 L80B50 75.000 h 12091-402
Module 600x600
44 Opal 9.0 White 4000 4550 104 L80B50 75.000 h 12050-402
44 Opal 9.0 Alu grey 4000 4450 104 L80B50 75.000 h 12063-402
44 Opal 9.0 White 3000 4500 102 L80B50 75.000 h 12073-402
44 Opal 9.0 Alu grey 3000 4500 102 L80B50 75.000 h 12080-402
50 Delta 9.5 White 3000 4900 98 L80B50 75.000 h 12092-402
50 Delta 9.5 White 4000 5000 100 L80B50 75.000 h 12093-402
50 Delta 9.5 Alu grey 3000 4900 98 L80B50 75.000 h 12094-402
50 Delta 9.5 Alu grey 4000 5000 100 L80B50 75.000 h 12095-402
Text som beskriver tabellen
W Louvre Weight, kg Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Module 300x1200
42 Delta 9.9 Alu grey 4000 4600 102 L80B50 75.000 h 12066-459
42 Delta 9.9 Alu grey 3000 4500 100 L80B50 75.000 h 12083-459
45 Delta 9.9 White 4000 4600 102 L80B50 75.000 h 12053-459
45 Delta 9.9 White 3000 4500 100 L80B50 75.000 h 12076-459
Text som beskriver tabellen
W Louvre Weight, kg Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Module 300x1200
42 Delta 9.9 Alu grey 4000 4600 102 L80B50 75.000 h 12066-458
42 Delta 9.9 Alu grey 3000 4500 100 L80B50 75.000 h 12083-458
45 Delta 9.9 White 4000 4600 102 L80B50 75.000 h 12053-458
45 Delta 9.9 White 3000 4500 100 L80B50 75.000 h 12076-458
Text som beskriver tabellen
W Louvre Weight, kg Colour CCT (K) lm lm/W Useful life Art.No.
LED (system)
Module 300x1200
42 Delta 9.9 Alu grey 4000 4600 102 L80B50 75.000 h 12066-457
42 Delta 9.9 Alu grey 3000 4500 100 L80B50 75.000 h 12083-457
45 Delta 9.9 White 4000 4600 102 L80B50 75.000 h 12053-457
45 Delta 9.9 White 3000 4500 100 L80B50 75.000 h 12076-457

Connection cable for controller for e-Sense Connect

Art.No.
Connection cable between control unit and controller to e-Sense Connect 86303

Controller for e-Sense Connect

Central to the system is a controller which is the link between the luminaires and the control functions. The controller transmits over the 2.4 GHz frequency band. The RF units in the luminaire work with a technology called CRMX, which stands for cognitive radio multiplexer, and means in practical terms that communications are always optimally secured with guaranteed access.

Art.No.
Control unit to e-Sense Connect 86300

External sensor for e-Sense ActiLume

For presence detection over a larger area, one or more LRM 8118 detectors can be connected to one of the DALI terminals in the luminaire. No programming or commissioning is necessary. LRM 8118 is ideally installed on the ceiling, and has a detection area of approximately 7 x 7 metres. LRM 8118 is only a presence sensor.

Art.No.
External sensor LRM8118 86152

Remote control for e-Sense ActiLume

To modify function, several modes can be programmed using the remote control. The system is programmed with nine finished modes for schools, corridors, etc.

Art.No.
Remote control 86155

Remote control for e-Sense Connect

The remote control is used as a temporary tool for grouping the system. A few basic functions can create a very energy-efficient solution with a high degree of lighting comfort for the user. The remote control uses RF rather than IR signals, which means that it only needs to be directed towards the luminaires at the first grouping.

Art.No.
Remote control (for grouping) to e-Sense Connect 86301

Surface-mounted box for e-Sense ActiLume

Art.No.
Surface mounted box LRM8118 86164

Wall panel for e-Sense ActiLume

The unit has only two buttons, one to switch on/increase the light level and one to switch off/reduce the light level.

Art.No.
Wall panel IRT 8050 86151

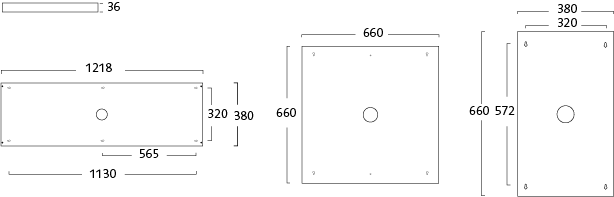

Dimensions picture
Light distribution
Delta 300x1200

Delta 300x1200

Opal 300x1200

Opal 300x1200

Opal 600x600

Opal 600x600
