Aluflex 600

Aluflex 600 is a luminaire that provides reading light and a supplementary examination light at the head end of the patient’s bed. This luminaire is for mounting in a medical supply unit.

Installation

Luminaire for recessed installation in Aluflex 15 (13 mm plate).
The luminaire must not be covered with insulation. For further details please refer to the assembly instructions.

Connection

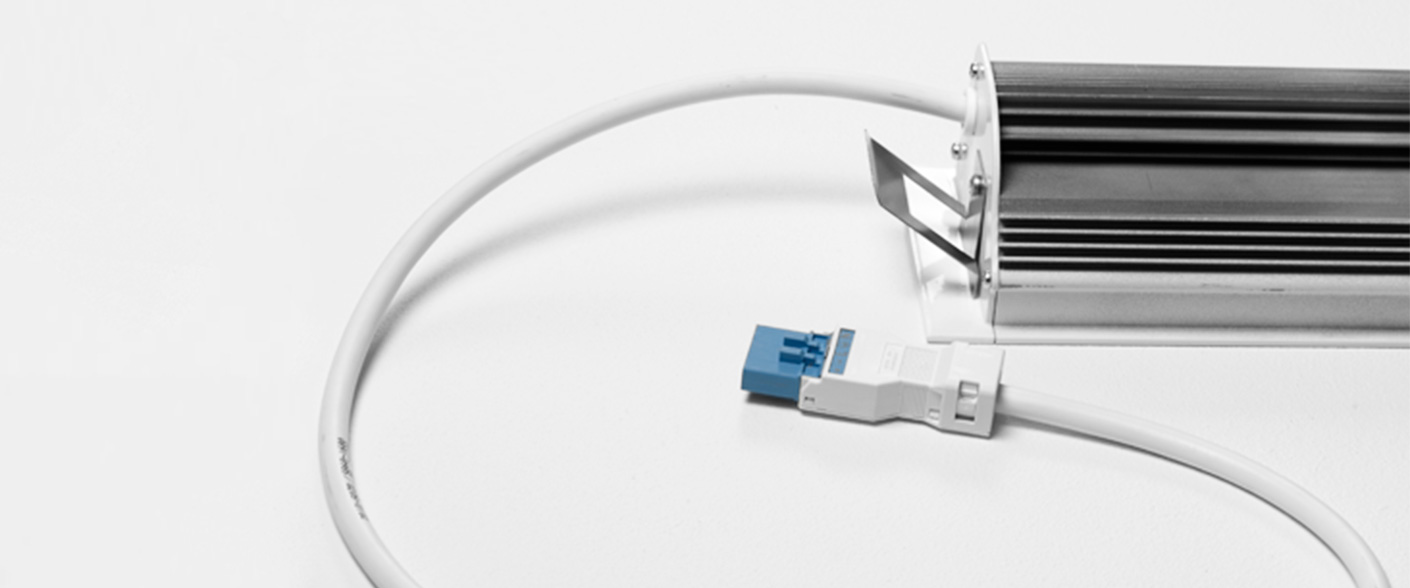

Supplied with 1 m mains cable and 5-way Winsta mini snap-in connector.

Design

Luminaire body in white-enamelled extruded aluminium.

Louvre

Transparent acrylic (PMMA).

Reflector

Asymmetrical reflector in MCPET.

Light distribution

Asymmetrical.

Dimming

DALI as standard.

Media

Luminaire equipped with 5-way Winsta mini snap-in connector

Aluflex 600

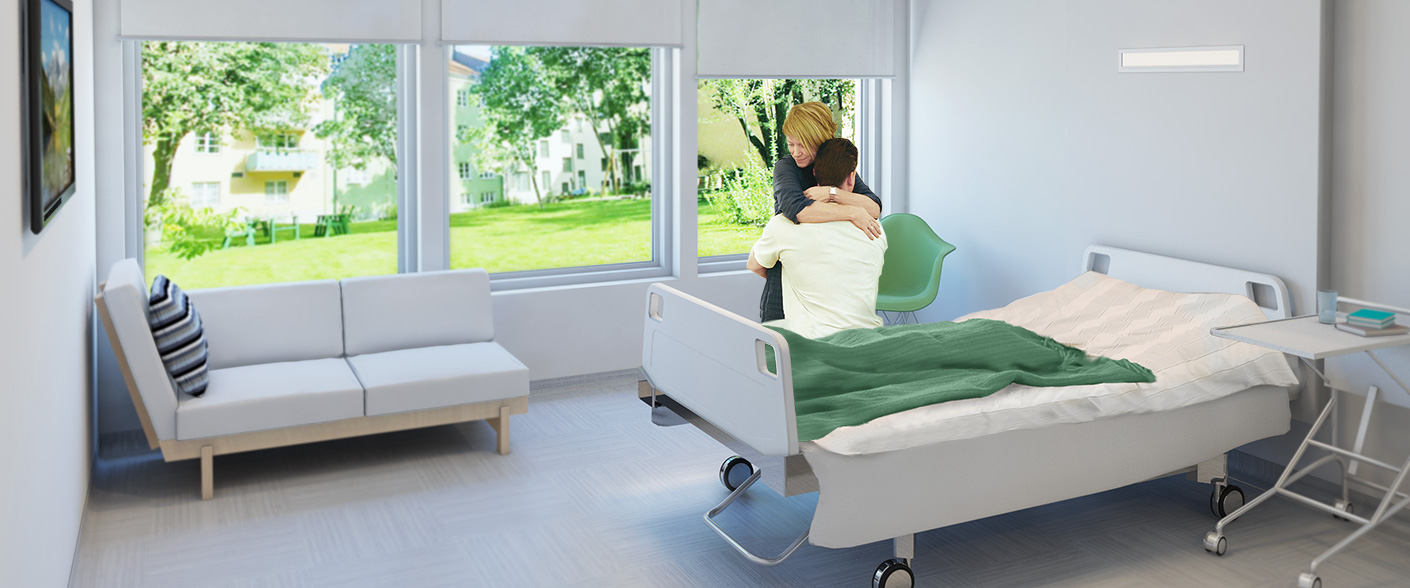

Aluflex 600 provides reading light and a supplementary examination light at the head-end of the patient’s bed. Based on energy-efficient LED technology the well shielded light is framed with a stylish aluminium profile.

Aluflex...

More about the family Aluflex 600

Document

Specification

Filter

Art.no. Lumen output CCT, K Length, mm Colour Light control
Art.no. Lumen output CCT, K Length, mm Colour Light control
74612-402 2624 4000 604 White DALI/Phase-pulse
74613-402 2335 3000 604 White DALI/Phase-pulse

Aluflex 600 recessed installation

Aluflex 600 mounted in horizontal Aluflex
